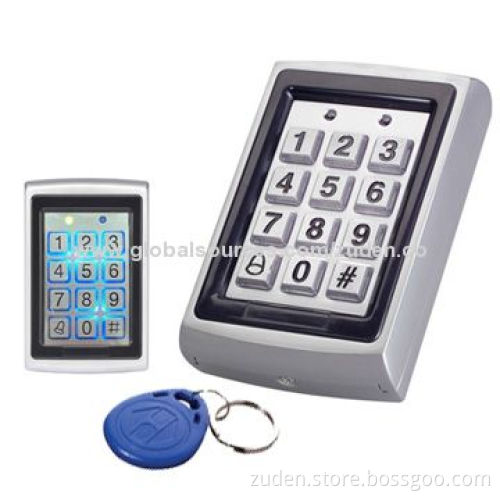

Access Control Panel with Metal Shell, Blue Backlight and ID Card Reader, Supports 500 Users

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Built-in proximity card reader (125kHz, ask modulation)

Built-in keypad for PIN code entry

Metal shell design

Auxiliary input and output

With 8 auxiliary modes including: door ajar, forced door,shunt, door monitor and normal/secure internal buzzer

With 2 status/programming interface LEDs

2-mode of operating: normal and secure mode

With 3 user levels: normal, secure and master user

With 4 open door modes: 4 digits pin code and card and 4 digitspin code, EM card

Standalone access controller:

Keystroke with blue backlight
Vandal-resistant proximity card and keypad access controlunit
Suitable for external applications
Unit accepts up to 500 users and provides entry via use ofproximity cards and/or pin codes

Specification:

Operating voltage: 12V DC, from regulated power supply
Input current:
- Standby: 40mA
- Maximum: 130mA (not including attached devices)
Outputs: lock strike relay from C, 5A
Auxiliary relay: from C, 5A
Lock strike control output: collector open output (25mA)
Auxiliary control output: collector open output (25mA)
Inputs:
- Rex: no, dry contact
- Auxiliary input (in/monitor): NC, day contact in
- Monitor mode: no, contact input mode
Built-in proximity reader:
Read range: 65mm
Modulation: 125kHz
Compatible cards: all 26 bits EM cards
Operating temperature: -31 to 63°C
Dimension: 120 x 76 x 27mm
Weight: 0.41kg
