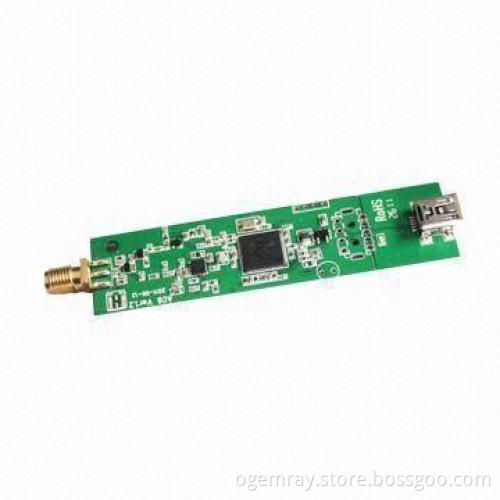

High-power USB Wi-Fi Module

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union

Product Description

Chipset: 500mW, 150Mbps, Ralink RT3070, 1T1R mode

Supports Windows 7/XP/Vista/CE, Linux 2.6X/Mac operatingsystems

AP software function

Wi-Fi: 802.11 b/g/n

Maximum power: 500mW on 802.11 b/g/n, provides about 1000mWi-Fi signal coverage (in open area)

Supports USB 2.0/1.1 interface, mini USB port and 1.2m type Aextended cable

Antenna: 5dBi (or 7, 9) detachable SMA external

High-speed and longer extended distance for embedded devicesand high end game machines

LED show: link or activity

OFDM, peak rate: 150Mbps

Peak throughput: 90Mbps

Host interface: USB2.0/1.1, type A (4-pin header)

Frequency: 2412 to 2483.5MHz, ISM band

Speed:

802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
802.11n:
- 20MHz: MCS0-7, supports up to 72Mbps
- 40MHz: MCS0-7, supports up to 150Mbps

Transmit power:

802.11b: 18 ±1.5dBm
802.11g: 15 ±1.5dBm
802.11n:
- HT20: 14 ±1.5dBm
- HT40: 14 802.11n: (1.5dBm

Receive sensitivity:

802.11b: -84dBm at 11Mbps
802.11g: -68dBm at 54Mbps
802.11n:
- HT20: -67dBm at MSC7
- HT40: -63dBm at MSC7

Security: WEP 64-/128-bit, WPA, WPA2, 802.1x and 802.11i

Voltage: 5.0V DC ±5%

Current: <110mA

Operating temperature: 0 to 50°C

Certifications: 802.11b/g/n, WPA, WPA2, WMM, WMM-PS, WHQL,Cisco CCS V1.0, 2.0 and 3.0

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
