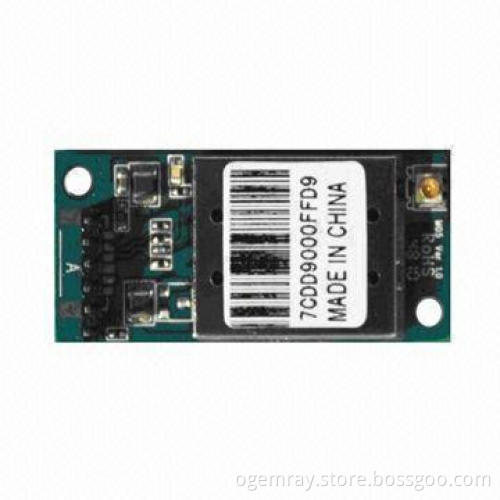

Embedded Wi-Fi Module for IP Device, Set-top Boxes

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union

Product Description

Wi-Fi speed:

Peak rate: 54Mbps

Peak throughput: 27Mbps

Power management

Hardware:

RF:

Software:

Voltage range: 5.0V DC ±5%

Operating temperature: 0 to 50°C

Storage temperature: -20 to 70°C

Operating humility: 95%RH (non-condensing)

Storage humidity: 95%RH (non-condensing)

Certifications:

802.11b: 1, 2, 5.5 and 11Mbps

802.11g: 6, 9, 12, 24, 36, 48 and 54Mbps

Chipset: Ralink RT3070

Host interface: USB2.0 (6-pin 2.0mm male pitch jumper)

LEDs link/activity

Antenna: external visa IPEX socket

Frequency: 2412 to 2483.5MHz, ISM band

Transmit power:

802.11b: 17 ±1.5dBm

802.11g: 14 ±1.5dBm

Receive sensitivity:

802.11b: -84dBm at 11Mbps

802.11g: -68dBm at 54Mbps

Operating system: Microsoft's Windows CE/2000/XP/Vista, Linux,Mac OS X

Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0and V3.0 compliant

Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS

WHQL, Cisco CCX, USB-IF
