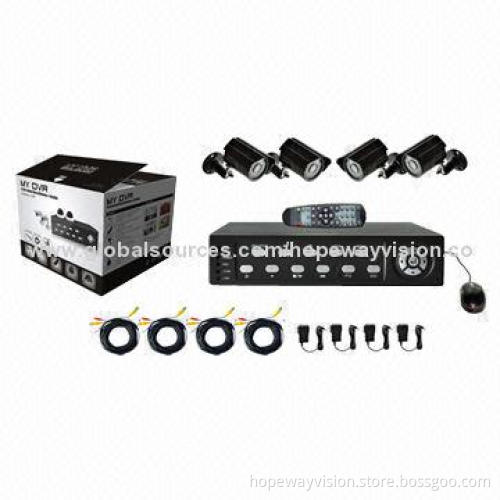

4CH DVR kit with 4pcs Analog cameras

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

For small business and home appliange

4 high resolution cameras;

24-hour visual coverage;

Incredible quality;

Impressive performance, & excellent price

Specification:

Video system: NTSC / PAL (auto detection)
Video compression: H.264
Video input: BNC*4 (Composite signal 1.0Vp-p 75 Ω )
Video output (BNC):BNC*1 (Composite signal 1.0Vp-p 75 Ω )
Video output (VGA): Built-in VGA interface for LCD monitor (1280*1024, 1024*768, 800*600)
Video record frame rate: NTSC： 30 fps/ch, PAL：25 fps/ch
Video record frame rate (max): NTSC： 120 fps, PAL： 100 fps
Video record resolution: D1：720*480(NTSC) 30 fps, 720*576(PAL) 25 fps, Half D1： 720*240(NTSC) 60 fps, 720*288(PAL) 50 fps, CIF： 352*240(NTSC) 120 fps, 352*288(PAL) 100 fps
Audio input/output:4 ch (RCA) / 1 ch(RCA)
Operationg mode: live display, record, playback, backup, network
Recording mode: manual, time, motion, alarm, remote
Alarm input/output: 4 ch Input, 1 ch Output
Motion detection sensitivity: four adjustavle parameters for accurate detection
HDD storage:1 SATA HDD, 2000 GB supported
USB flash drive backup: YES (2 PC USB2.0 interface)
Network interface: 1 PC RJ45 10M/100M Ethernet interface
Network protocol: TCP/IP, UDP, HTTP, NTP, DHCP, DDNS(Dynamic IP)
Network function: IE remote monitor, control, setup, playback
IR remote control: yes
Weight (without HDD): ≤ 3 kg
Multilingual OSD: yes
