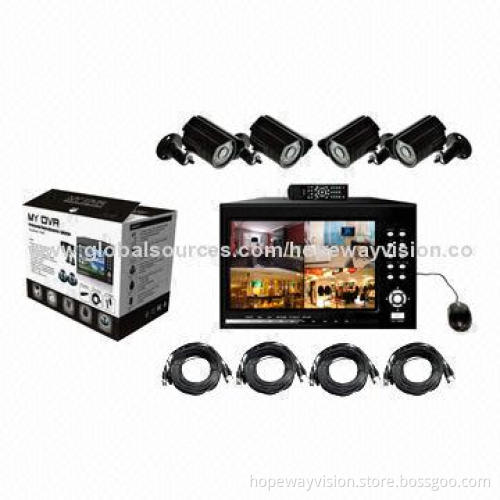

LCD DVR kit with 4pcs Analog cameras

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

For small business and home appliange

4 high resolution cameras;

24-hour visual coverage;

Incredible quality;

Impressive performance, & excellent price

Specification:

Video compression:H.264
Video input：4ch BNC*4 (Composite signal 1.0Vp-p 75Ω )
Video output (BNC)： BNC*1 (Composite signal 1.0Vp-p 75Ω )
Video output (VGA)：Built-in VGA interface for LCD monitor (1280*1024, 1024*768, 800*600)
Video record frame rate：NTSC：30fps/ch, PAL：25fps/ch
Video record frame rate (max)：NTSC：120fps,PAL：100fps
- Video record resolution：
  - D1：720*480(NTSC) 30fps,720*576(PAL) 25fps; Half D1：720*240(NTSC)60fps,720*288(PAL)50fps, CIF：352*240(NTSC)120fps,352*288(PAL)100fps
Audio input/output：2ch (RCA) / 1ch(RCA)
Operationg mode：live display, record, playback, backup, network
Recording mode：manual, time, motion, alarm, remote
Alarm Input/Output：4ch Input, 1ch Output
PTZ camera control：YES (Pelco-D & Pelco-P)
Motion detection sensitivity：four adjustavle parameters for accurate detection
HDD storage：1 SATA HDD, 2000GB supported
USB flash drive backup：YES (2pc USB2.0 interface)
Network interface: 1 pc RJ45 10M/100M Ethernet interface
Network protocol：TCP/IP, UDP, HTTP, NTP, DHCP, DDNS(Dynamic IP)
Network function：IE remote monitor, control, setup, playback
CMS - central management system: YES (Maximum：16 different IP addresses)
IR remote control
Multilingual OSD
Power source：12V DC

Video compression:H.264

Video input：4ch BNC*4 (Composite signal 1.0Vp-p 75Ω )

Video output (BNC)： BNC*1 (Composite signal 1.0Vp-p 75Ω )

Video output (VGA)：Built-in VGA interface for LCD monitor (1280*1024, 1024*768, 800*600)

Video record frame rate：NTSC：30fps/ch, PAL：25fps/ch

Video record frame rate (max)：NTSC：120fps,PAL：100fps

Video record resolution：
- D1：720*480(NTSC) 30fps,720*576(PAL) 25fps; Half D1：720*240(NTSC)60fps,720*288(PAL)50fps, CIF：352*240(NTSC)120fps,352*288(PAL)100fps

Audio input/output：2ch (RCA) / 1ch(RCA)

Operationg mode：live display, record, playback, backup, network

Recording mode：manual, time, motion, alarm, remote

Alarm Input/Output：4ch Input, 1ch Output

PTZ camera control：YES (Pelco-D & Pelco-P)

Motion detection sensitivity：four adjustavle parameters for accurate detection

HDD storage：1 SATA HDD, 2000GB supported

USB flash drive backup：YES (2pc USB2.0 interface)

Network interface: 1 pc RJ45 10M/100M Ethernet interface

Network protocol：TCP/IP, UDP, HTTP, NTP, DHCP, DDNS(Dynamic IP)

Network function：IE remote monitor, control, setup, playback

CMS - central management system: YES (Maximum：16 different IP addresses)
