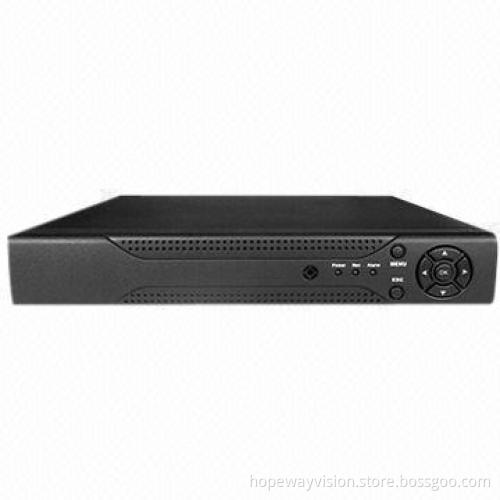

4CH professional NVR IP camera, optional

4CH professional NVR IP camera, optional

Get Latest Price

Payment Type:: T/T in Advance, L/C at Sight or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C at Sight or Western Union

Product Description

Feature:

Up to 4 channel with 720p realtime live view
H.264/MPEG-4 dual codec decoding
Up to 5Mp resolution
Max support 4CH@720P preview & recording
HDMI / VGA / BNC simultaneous video output
2 channel synchronous realtime playback
ONVIF Version 2.1 conformance
Support 1 SATA HDDs up to 2TB
Multiple network monitoring: Web viewer, CMS & Mobile

Specification:

Operating system: embedded LINUX
Video & audio IP camera input: 4 channel
Two-way talk: 1 channel Input, 1 channel Output, BNC
Display interface:1 HDMI, 1 VGA, 1 BNC
Resolution: 800*600;1024*768;1280*1024;1440*900;1920*1080
Display split: 1/4/8
OSD: camera title, Time, Video loss, Camera lock, Motion detection,
Recording compression: H.264（High Profile@Level4.2）/ MPEG-4
Resolution: 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Record rate: max 4CH@720P
Record mode: manual, schedule (Regular(Continuous), MD, Alarm), stop
Record interval: 1~120 min (default: 60 min), pre-record: 1~30 sec, post-record: 10~300 sec
Trigger events: recording，Alarm，video push，Email, buzzer
Video detection: motion detection、video loss、HDD loss
Alarm input: 4 channel
Relay output: 1 channel
Playback & backup: sync playback:1/2
Search mode: time/date, alarm, MD & exact search (accurate to second)
Playback functions: play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom
Backup mode: USB Device / Network
Network: Ethemet RJ-45 port (10/100M)
Network functions: HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS
Max.user access: 20 users
Mobile phone: iPhone, IPad, Android
Storage: internal HDD 1 SATA ports, up to 2TB
Auxiliary interface: USB Interface 3 ports (1 Rear), USB2.0
RS232: yes
RS485: 1 port, For PTZ control
Power supply: 12V DC/4A
Power consumption: 10W(without HDD)
Working environment: -10 to +55 deg. C / 10~90%RH / 86~106kpa
Dimensions (W*D*H):1U，255*230*42 (mm)
Weight: 1.5-2.0kg (without HDD)

Up to 4 channel with 720p realtime live view

H.264/MPEG-4 dual codec decoding

Up to 5Mp resolution

Max support 4CH@720P preview & recording

HDMI / VGA / BNC simultaneous video output

2 channel synchronous realtime playback

ONVIF Version 2.1 conformance

Support 1 SATA HDDs up to 2TB

Multiple network monitoring: Web viewer, CMS & Mobile

Operating system: embedded LINUX

Video & audio IP camera input: 4 channel

Two-way talk: 1 channel Input, 1 channel Output, BNC

Display interface:1 HDMI, 1 VGA, 1 BNC

Resolution: 800*600;1024*768;1280*1024;1440*900;1920*1080

Display split: 1/4/8

OSD: camera title, Time, Video loss, Camera lock, Motion detection,

Recording compression: H.264（High Profile@Level4.2）/ MPEG-4

Resolution: 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)

Record rate: max 4CH@720P

Record mode: manual, schedule (Regular(Continuous), MD, Alarm), stop

Record interval: 1~120 min (default: 60 min), pre-record: 1~30 sec, post-record: 10~300 sec

Trigger events: recording，Alarm，video push，Email, buzzer

Video detection: motion detection、video loss、HDD loss

Alarm input: 4 channel

Relay output: 1 channel

Playback & backup: sync playback:1/2

Search mode: time/date, alarm, MD & exact search (accurate to second)

Playback functions: play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom

Backup mode: USB Device / Network

Network: Ethemet RJ-45 port (10/100M)

Network functions: HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS

Max.user access: 20 users

Mobile phone: iPhone, IPad, Android

Storage: internal HDD 1 SATA ports, up to 2TB

Auxiliary interface: USB Interface 3 ports (1 Rear), USB2.0

RS232: yes

RS485: 1 port, For PTZ control

Power supply: 12V DC/4A

Power consumption: 10W(without HDD)

Working environment: -10 to +55 deg. C / 10~90%RH / 86~106kpa
