Product Description

Product description:

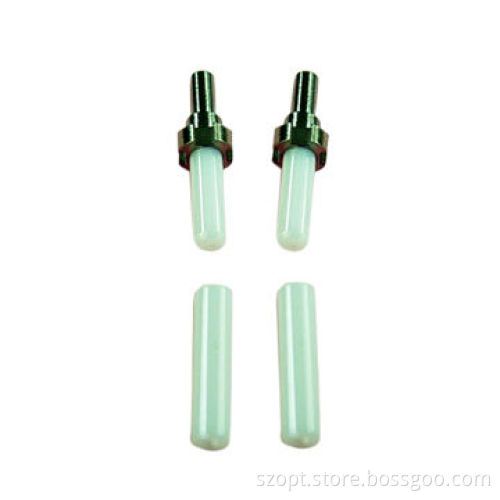

SC/APC fiber-optic connector for single and multi-mode
LC FC SC terminal
Simplex and complex

Product features:

High repeatability and interchangeability
PC, APC and different colors available
SM or MM available
0.9/2.0/3.0mm available

Product specification/models:

Type:
- SM
- MM
Model:
- PC
- APC
- PC
Ferrule ID (um):
- 125-126/127
- 125-126
- 125-128
Concentricity (um):
- <1.0
- <1.0
- <3.0
Insertion loss (dB):
- <0.2
- <0.2
- <0.15
Return loss (dB):
- >50
- >60
- /
Repeatability: >1,000 times
Applicable fiber: 9/125 50/125 62.5/125

Applications:

Available for SM and MM, OD 1.25mm and 2.5mm, PC and APC
Applicable to SC/ST/FC/LC/MU/E2000/DIN/SMA/D4/LX.5 connectors

Use of zirconia raw material ensures good reliability, high precision for concentricity, ID and OD

Compliant with RoHS, IEC and Telcodia-GR-326-Core

Other information:

Data network communication: military data network communication
Payment: TT/LC
Delivery lead-time: 3-5 days
Origin: China
Minimum order: 10pcs
Packaging: each piece with individual plastic bag
Inspection: RoHS
Samples: free
Sample price: $0.01
Remarks: SC PC/APC fiber-optic connector and ceramic ferrule
