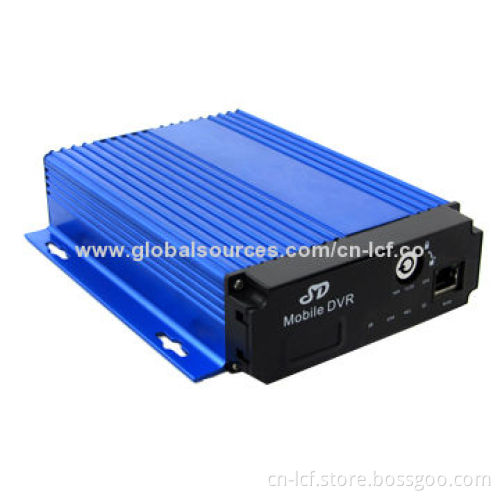

3G SD Card MDVR, Supports GPS, Wi-Fi and 3G

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

Model number:

AV input: 4 channels, aviation connector

AV output: 1 channel, aviation connector

Video compression format: H.264

Resolution: D1/HD1/CIF selectable

Video frame rate: 100fps (PAL), 120fps (NTSC), 50fps (4*D1)

Recording: fire recording, time recording, alarm recording

Storage: SD card

Alarm: 1CH alarm, alarm and recording at the same time

Vehicle recording: recording vehicle operation (turn left/right, stop lamp), license number, route, driver

System protection: saving the recording data when the power off, supports hard disk upgrading

Network: RJ45 Ethernet interface and can copy the data through wired/wireless networks, controlling and managing the main machine

PTZ control: RS232 can turn to PTZ interface

GPS: supports GPS module expansion, recoding and playback the vehicle route

G-sensor module: supports G-sensor module expansion, recording vehicle direction state and alarm

Battery: wide voltage range

Operation voltage: 6~48V

Recommend range: 8-40V

Instantaneous range: 6-70V

Supports over-voltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing, delay power-off

Output voltage is 12V

Power: 2.4W

System: embedded full-time multitask control system, support, Chinese simplified and English

Working environment:

LCF-VD500 Series

LCF-VD500G (supports GPS)

LCF-VD500G-W (supports 3G and GPS)

D1: highest

CIF: lowest

Working temperature: -20 to 50°C

Working humidity: <90%

Storage temperature: -30 to 70°C

Storage humidity: <90%
