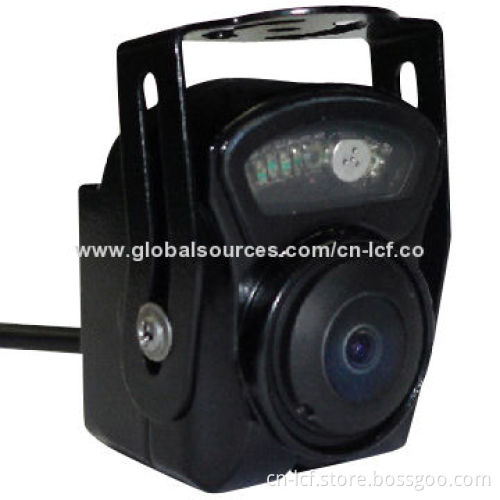

Mini IR car rearview camera with audio

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

Model no: LCF-VDIRCS (small mini IR car camera with audio optional)

Sensor: 2090+ 1/3 color Sony 811 CCD

TV system: PAL/NTSC optional

Effective pixel array: 976H x 582V

Resolution: 600TVL

Sensitivity: 0lux (LED on)

Scanning system: 2.1 interlace

Synchronization: internal

Infrared LED: 5 LEDs with SMD type

IR range: 10m

S/N ratio: 50 dB (AGC off)

Audio: available

Switchable IR filter: no

Auto gain control: auto

White balance: auto

Electronic shutter: auto

Backlight compensation: auto

Video output: 1Vp-p, 75Ω composite

Gamma ratio: 0.45

Lens: waterproof f2 35mm fixed iris

Lens angle (D): 145°

Pan adjusting: +/- 30°

Tilt adjusting: 0-90°

Power supply: 12V DC ±10%

Power consumption: 130mA

Size: 32.2(L) x 42.6 (H) x 29.5 (W) mm

Net weight: 51g

Waterproof: N/A

Operating temperature: -20 to 50°C
