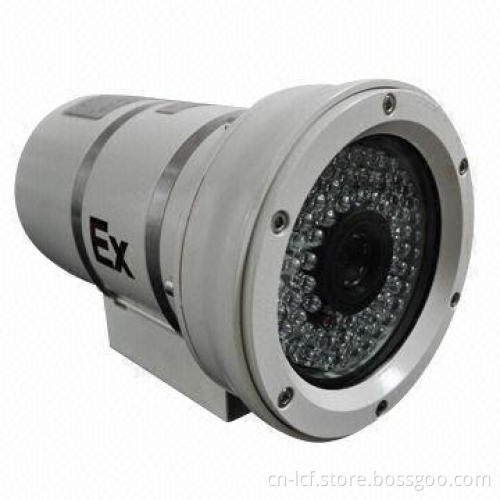

Zoom Stainless Steel Explosion-proof IR Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

Certificate of conformity (Electrical Apparatus for ExplosiveAtmospheres):

Marking: Exd II CT6/DIP A20 TA, T6
Certified no.: CNEx11.0277
Mechanical features:
- Material: 304 stainless steel (316 optional)
- Surface treatment: fluorine-carbon spray processing
- Ingress protection: IP68
- Interface spec: G-3/4 inches
- Weight: d8kg
- Method of installation: wall mounting
- Outer dimensions: 320mm (L)*178mm(H)
Electrical features:
- Input voltage: DC 12V
- Working current: d2A
- Camera movement: Sony 480CP/Sony 1080P/SG700
- Image sensor: 1/3 Sony Super Effio HAD/ex-view HAD II CCDsensor
- Resolution: 480TVL/530TVL/700TVL
- Focal distance: 4.1-73.8mm/3.4-122.4mm/3.7-91mm
- Zoom ratio: 18x optical*12x digital/36 x optical *12xdigital/22x optical*12x digital
- Signal-to-noise ratio: e52dB
- Minimum illumination: 0 lux (infrared on)
- IR switch: auto d10 lux
- Distance: 30-100m
- Wavelength: 850nm
- Electrical connectivity: composite cable
Environmental:
- Rated temperature: 30 to 70°C
- Atmospheric pressure: 86-106kpa
- Relative humidity: d95%RH (±25°C)

Marking: Exd II CT6/DIP A20 TA, T6

Certified no.: CNEx11.0277

Mechanical features:

Electrical features:

Input voltage: DC 12V
Working current: d2A
Camera movement: Sony 480CP/Sony 1080P/SG700
Image sensor: 1/3 Sony Super Effio HAD/ex-view HAD II CCDsensor
Resolution: 480TVL/530TVL/700TVL
Focal distance: 4.1-73.8mm/3.4-122.4mm/3.7-91mm
Zoom ratio: 18x optical*12x digital/36 x optical *12xdigital/22x optical*12x digital
Signal-to-noise ratio: e52dB
Minimum illumination: 0 lux (infrared on)
IR switch: auto d10 lux
Distance: 30-100m
Wavelength: 850nm
Electrical connectivity: composite cable
