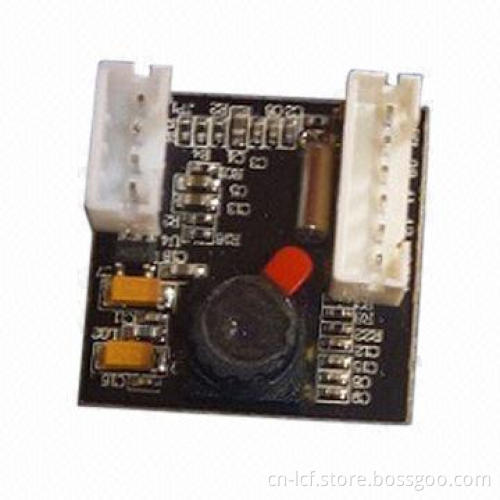

SPI JPEG Camera Module, High Speed, UART Module

SPI JPEG Camera Module, High Speed, UART Module

Get Latest Price

Payment Type:: T/T in Advance, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union, PayPal

Product Description

Application area: all kinds of embedded image acquisitionsystems, such as remote monitoring, vehicle monitoring, videodoorbell and more, image transmission such as those based telephonelines, GPRS CDMA, data radio and other low speed channel remotevideo surveillance system

Features:

UART standard serial port and SPI high speed serial port,it cantake photos and uploaded the image data to host computer
300,000 pixels and CMOS sensor, high frame rate camera,it canobserve and capture moving objects
Video output CVBS signal and can be achieved locally monitorand external DVR
TTL level, ultra-small size, can be installed in differentproducts flexibly

Technical parameters:

Image sensor: 1/5-inch color CMOS sensor
Image resolution:
- PAL: 628x582
- NTSC: 510x492
Communication port:
- Standard serial port, TTL level, baud rate from 9600 to115200bps at most, default one is 38400bps
- SPI high speed serial port, TTL level, bau drate can be setup13.5Mbps at most, default one is 13.5Mbps
Communication protocol: UART 0706 protocol
Image data: JPEG image, image size can be 640*480 at most,default one is 640x480
Lens:
- F/NO: 2.5 f = 3.27mm, FOV = 63°
Product size: 22*22*9mm
Working voltage: DC 3.0-5.5V
Working current: 90mA
Working temperature: -20 to 60°C
Storage temperature: -30 to 70°C
Humidity: 90% RH
