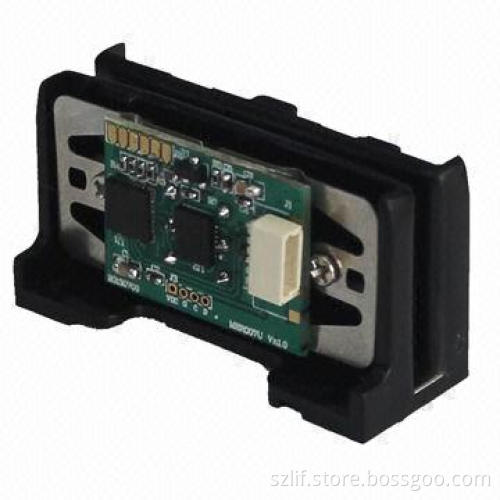

Magnetic Stripe Swipe Card Reader, Supporting OPOS Driver, 43mm USB HID

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Low cost solution for triple track readers
Available ISO TK1, 2 and 3
Ultra-compact design
High noise immunity
No more mill volt-level analog signals to route, no analogsignals leave the shielded magnetic head, withstands noisy PCmonitors, cellphones, switching power supplies and more
High performance decoding
New design reads badly damaged cards, compensates for poor headmounting
AGC (Automatic Gain Control)
Reads cards from 30-200% of ISO 7811 amplitude standard
Supports decode ID code of all iButtons
conforming to Dallas Semiconductor 1-wire protocol
No Windows driver needed MagStripe card
Reader configuration utility fast and easy to use
Supporting OPOS driver

Specification:

ANSI/ISO standards 7810, 7811-1/6, 7813
Two-frequency coherent phase (F2F)

Decoding method:

ISO:
Track 1: IATA
Track 2: ABA
Track 3: thrift
Card swiping direction: bi-directional
Interface: USB (HID-keyboard mode)
Support Microsoft Windows 98/ME/2000/XP/Vista 32-bit
OPOS driver for Win32-based POS device access
Card swiping speed: card speed through the unit may vary from 3IPS to 100 IPS (7cm/s to 250cm/s)
Lift: electronics 125,000 hours, head 1,000,000 passes
Power supply: 5V DC
Power consumption: less than 8.5mA maximum total current whenno card is being swiped, less than 10mA maximum total current at 5Vwhile card is being swiped
Operating temperature: 0-+55°C
Storage temperature: -10-+55°C
Humidity: 10-90 relative
Dimensions: 22.40 x 16.00 x 43.00mm
