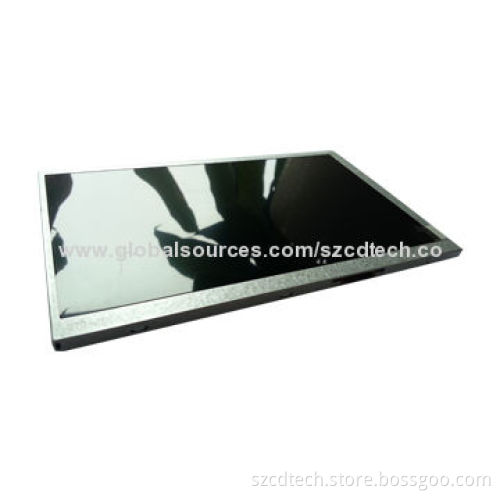

Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
  • Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
  • Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
  • Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution
Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution

Analog 7-inch TFT LCD Panel with 480 x 234-pixel Resolution

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Screen: 7-inche Analog TFT LCD
  • Model: S070WQ01
  • Display mode: anti-glare, hard coating, trans missive type, TN TFT LCD
  • Display format: RGB strip type, 26-pin interface
  • Resolutions: 480 x 234P
  • Dimensional outline (H x V x D): 164.9*100*5.7mm
  • Active area (H x V): 154.08*86.58mm
  • Dot pitch (H x V): 0.321 (RGB) x 0.370mm
  • Viewing direction: 6 O’clock
  • Backlight type/color: LED/white x 18 pieces
  • Operating temperatures: -20 to 70°C
  • Storage temperatures: -30 to 80°C
  • Touch panel: resistive TP or capacitive TP is available
  • Applications: consumer electronics, medical, instruments and automotive
