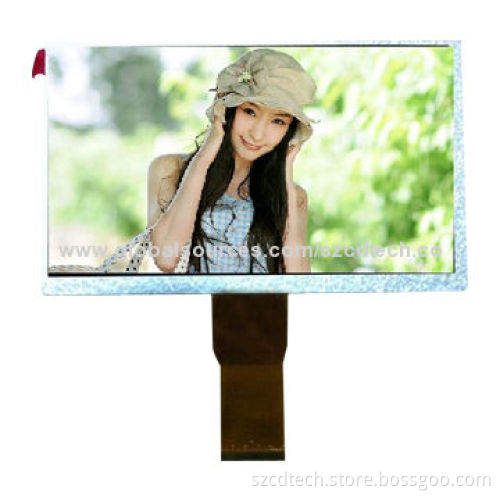

LCD Panels with 154.08 x 85.92mm Active Area , Suitable for Instrument, Medical, Automotive

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model: S070WV08

Resolution: 800 x 480 pixels

Color configuration: RGB vertical stripe

Technology type: A-si TFT

Interface: RGB 24bit

LED numbers: 27

Luminous flux: 300nits

TP VA (W x H): 73.32 x 55.44mm

TP AA (W x H): 72.52 x 53.64mm

High brightness: 500nits is available

Operating temperatures: -20 to +70 degrees

Storage temperatures: -30 to -80 degrees

Outline dimension (W x H x D): 164.9 x 100.0 x 3.5mm

Active area (W x H): 154.08 x 85.92mm

Size: 7.0 inches

Touchpanel: RTP or capacitive touchpanel
