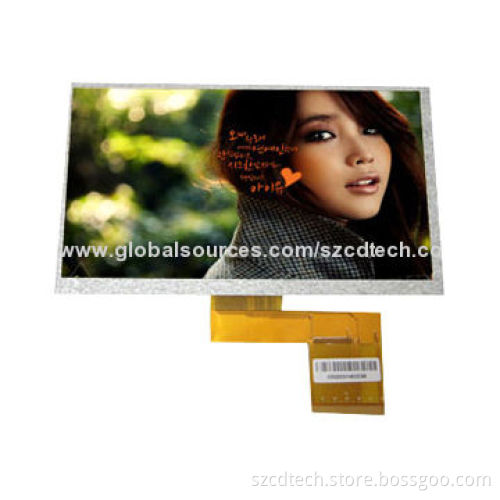

7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode
  • 7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode
  • 7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode
7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode
7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode

7.0-inch TFT LCD Module with 350 Nits, Normally White Display Mode

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Size: 7.0-inch
  • Resolution (H x V): 800 x 480 pixels
  • Interface: 24-bit RGB
  • Connect type: connector
  • Color depth: 262K
  • Technology type: a-Si
  • Display specification:
    • Pixel pitch: 0.0635 x 0.1905mm
    • Pixel configuration: RGB vertical stripe
  • Display mode: normally white
  • Surface treatment: HC
  • Viewing direction: 12 O’clock
  • LCM (W x H x D): 165*104.44*5.2mm
  • Active area: 152.4 x 91.44mm
  • With/without TSP
  • LED numbers: 24 LEDs
  • Operating temperature: -20-70°C
  • Storage temperature: -30-80°C
  • Luminance: 350 nits
  • Pixel pitch: 0.0635 x 0.1905mm
  • Pixel configuration: RGB vertical stripe
