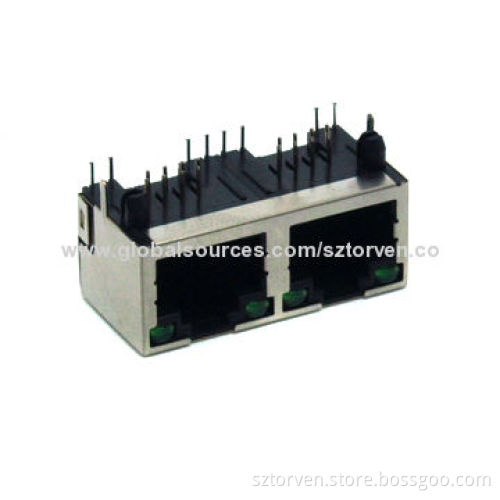

RJ45 Connector RJ Side-entry 1x2 LED Jack, Available in 1x1-1x8 Pole

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Housing material: glass filled polyester UL 94V-0 PBT/nylon

Housing colors: black or others

Contact material: phosphor bronze Ø0.46mm

Plating: gold plating over nickel

Gold plating thicknesses: 1.5µ”/3µ”/6µ”/15µ”/30µ”/50µ”

Shield: 0.23 thickness brass with nickel plating

LED: optional

Specifications:

Electrical:
- Voltage rating: 125V AC RMS
- Current rating: 1.5A
- Contact resistance: 30mΩ (maximum)
- Insulator resistance: 500MΩ (minimum) at 500V DC
- Dielectric withstanding resistance: 1,000V AC RMS, 50Hz minute
Mechanical:
- Durability: 750 cycles (minimum)
- PCB retention pre-solder: 1LB (minimum)
Environmental:
- Storage range: -40 - 80°C
- Operating range: -40 - 80°C
