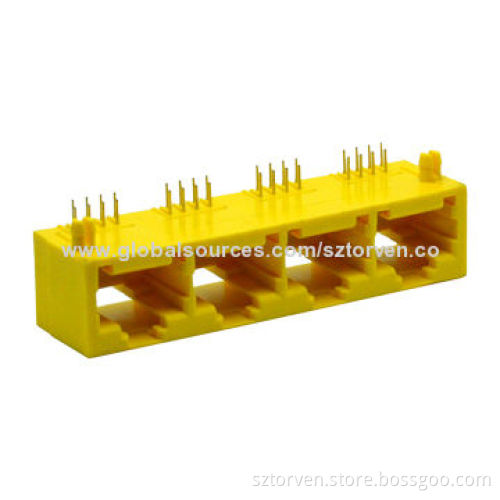

Side Entry Modular Jack 1x4 in Yellow, Available in 1x1~1x8 PoleNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Housing material: glass filled polyester UL94V-0 PBT/nylon

Housing color: black or others

Contact material: phosphor bronze φ0.46mm

Plating: gold plating over nickel

Gold plating thickness 1µ"/1.5µ"/3µ"/6µ"/15µ"/30µ"/50µ"

Electrical:

Mechanical:

Environmental:

Voltage rating: 125V AC RMS

Current rating 1.5A

Contact resistance: 30mΩ maximum

Insulator resistance: 500MΩ minimum at 500V DC

Dielectric withstanding resistance: 1000V AV RMS 50Hz 1 minute

Durability: 750 cycles minimum

PCB retention pre-solder: 1lb minute

Storage: -40-80°C

Operating: -40-80°C
