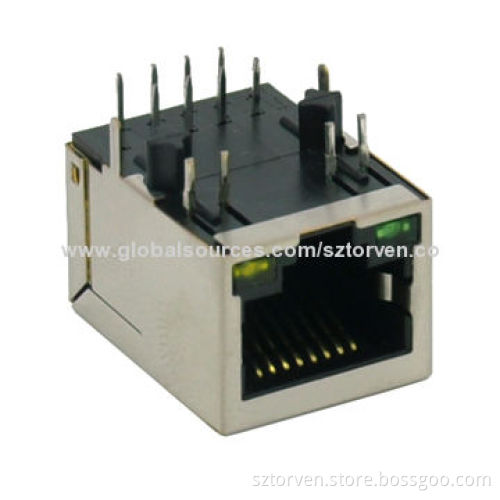

RJ45 transformer jack, 10/100 base tab down LED shieldedNew
  • RJ45 transformer jack, 10/100 base tab down LED shieldedNew
  • RJ45 transformer jack, 10/100 base tab down LED shieldedNew
RJ45 transformer jack, 10/100 base tab down LED shieldedNew
RJ45 transformer jack, 10/100 base tab down LED shieldedNew

RJ45 transformer jack, 10/100 base tab down LED shieldedNew

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Electrical specifications:
    • Housing material: PBT black
    • Contacts: 0.35mm thick phosphor bronze plated with 6µ” gold in contact
    • Insertion loss: 1-100MHz -1.0dB max
    • Return loss:
      • 1-30MHz -16.0dB min
      • 30-60MHz -14.0dB min
      • 60-80MHz -10.0dB min
    • Cross talk:
      • 1-30MHz -40.0dB min
      • 30-60MHz -35.0dB min
      • 60-80MHz -30.0dB min
    • CMR: 1-100MHz -35.0dB min
    • Hi-pot: 1,500V AC, 6s, 1mA
    • OCL: 350uH min at 100kHz, 100mV, 8mA DC
  • Mechanical:
    • Mating force: 2.27Kgf max
    • Durability: 750 cycles at min
    • PCB retention per solder: 1lb min
  • Environmental:
    • Storage: -40-85°C
  • Housing material: PBT black
  • Contacts: 0.35mm thick phosphor bronze plated with 6µ” gold in contact
  • Insertion loss: 1-100MHz -1.0dB max
  • Return loss:
    • 1-30MHz -16.0dB min
    • 30-60MHz -14.0dB min
    • 60-80MHz -10.0dB min
  • Cross talk:
    • 1-30MHz -40.0dB min
    • 30-60MHz -35.0dB min
    • 60-80MHz -30.0dB min
  • CMR: 1-100MHz -35.0dB min
  • Hi-pot: 1,500V AC, 6s, 1mA
  • OCL: 350uH min at 100kHz, 100mV, 8mA DC
  • 1-30MHz -16.0dB min
  • 30-60MHz -14.0dB min
  • 60-80MHz -10.0dB min
  • 1-30MHz -40.0dB min
  • 30-60MHz -35.0dB min
  • 60-80MHz -30.0dB min
  • Mating force: 2.27Kgf max
  • Durability: 750 cycles at min
  • PCB retention per solder: 1lb min
  • Storage: -40-85°C
