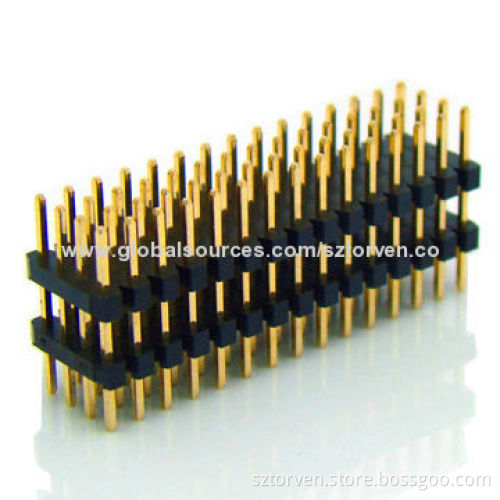

Pin Header, 2.0mm Pitch, Four-row, Straight DIP Type with Stackable Insulators
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
- Contact: brass
- Contact plating: Au or Sn over 50μ-inch Ni
- Insulator: black polyester UL94V-0
- Current rating: 1.5A/contact (maximum)
- Contact resistance: ≤20mΩ/contact
- Insulation resistance: ≥1,000MΩ at V = 100V
- Withstanding voltage: 450V AC/minute
- Mechanical lifetime cycle: 200 times (minimum)
- Operating temperature:
- Gold-plated: -55 to +105°C
- Tin-plated: -40 to +105°C
- Soldering temperature: +230°C, 10 seconds (maximum)
- Gold-plated: -55 to +105°C
- Tin-plated: -40 to +105°C
