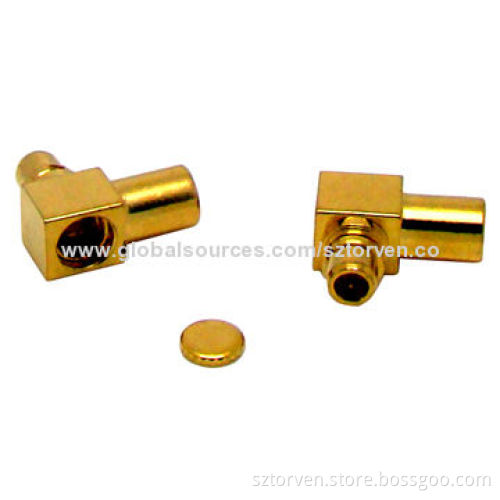

MMCX Connector Jack, Right Angle Type

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Working temperatures: -55-155℃

Typical impedance: 50Ω

Frequency: DC 6GHz

Working voltage: 170V max

Withstanding voltage: 500V rms

Contact resistance:

Insulator resistance: ≥1,000MΩ

VSWR straight type: ≤1.15 elbow ≤1.25

Mechanical lifespan: ≥500 cycles

Body: brass gold plated

Elastic contact: beryllium copper gold plated

Inner conductor: beryllium copper or tin bronze gold plated

Insulator: Teflon

Crimping suite: copper alloy tin/gold plated

Inner conductor: ≤5mΩ

Outer conductor: ≤2.5mΩ
