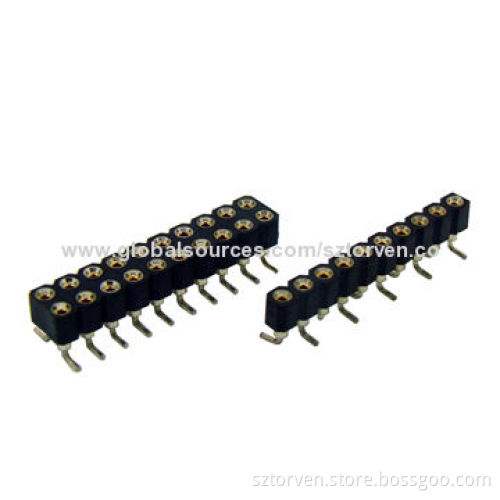

Socket Connectors, 2.54mm, SMT Type, Single and Dual Rows, Profile H = 3.0mm
  • Socket Connectors, 2.54mm, SMT Type, Single and Dual Rows, Profile H = 3.0mm
Socket Connectors, 2.54mm, SMT Type, Single and Dual Rows, Profile H = 3.0mm

Socket Connectors, 2.54mm, SMT Type, Single and Dual Rows, Profile H = 3.0mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin(outer sleeve): brass, machined CuZn38Pb2
    • Clip(contact 4 finger): beryllium copper, heat-treated
    • Plating(outer sleeve):
      • Tin plated: 2µm/80µ Ni, 5µm/150µ Sn
      • Plating(contact): 2µm/80µ Ni, gold 1µ plated
      • Insulator(black): glass filled thermoplastic polyester
      • UL94V-0 PBT
  • Electrical:
    • Current rating: 3Amps/contact max
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V=100V
    • Operating voltage: 60VAC/DC
  • Mechanical:
    • Average insertion force with steel pin of Ø0.43mm/0.17-inch: ≤250g
    • Average withdrawal force with steel pin of Ø0.43mm/0.17-inch: ≥50g (minimum)
    • Mechanical cycle lifespan: 200 (minimum)
    • Operating temperature:
      • Gold-plated: -55 to +105°C
      • Tin-plated: -40 to +105°C
  • Pin(outer sleeve): brass, machined CuZn38Pb2
  • Clip(contact 4 finger): beryllium copper, heat-treated
  • Plating(outer sleeve):
    • Tin plated: 2µm/80µ Ni, 5µm/150µ Sn
    • Plating(contact): 2µm/80µ Ni, gold 1µ plated
    • Insulator(black): glass filled thermoplastic polyester
    • UL94V-0 PBT
  • Tin plated: 2µm/80µ Ni, 5µm/150µ Sn
  • Plating(contact): 2µm/80µ Ni, gold 1µ plated
  • Insulator(black): glass filled thermoplastic polyester
  • UL94V-0 PBT
  • Current rating: 3Amps/contact max
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V=100V
  • Operating voltage: 60VAC/DC
  • Average insertion force with steel pin of Ø0.43mm/0.17-inch: ≤250g
  • Average withdrawal force with steel pin of Ø0.43mm/0.17-inch: ≥50g (minimum)
  • Mechanical cycle lifespan: 200 (minimum)
  • Operating temperature:
    • Gold-plated: -55 to +105°C
    • Tin-plated: -40 to +105°C
  • Gold-plated: -55 to +105°C
  • Tin-plated: -40 to +105°C
