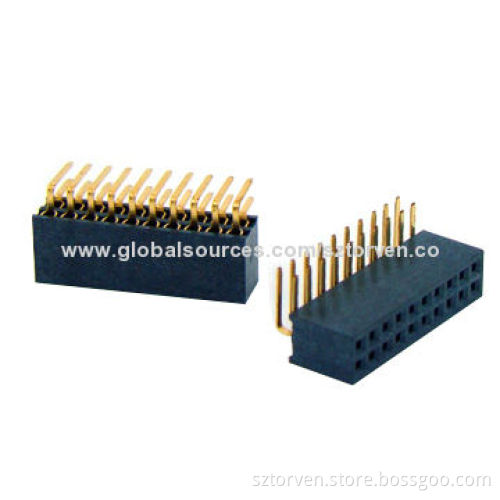

Female Headers, 1.27mm Dual-row Right Angle, 4.4mm Dip Type Height, LCP Material, 02 to 80-pin
  • Female Headers, 1.27mm Dual-row Right Angle, 4.4mm Dip Type Height, LCP Material, 02 to 80-pin
Female Headers, 1.27mm Dual-row Right Angle, 4.4mm Dip Type Height, LCP Material, 02 to 80-pin

Female Headers, 1.27mm Dual-row Right Angle, 4.4mm Dip Type Height, LCP Material, 02 to 80-pin

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Contact material: phosphor bronze
    • Contact plating: Au or Sn over 50μ-inch Ni
    • Insulator material: black polyester UL94V-0
    • Standard: PA6T + 30% GF
  • Electrical:
    • Current rating: 0.75A/contact (maximum)
    • Contact resistance: ≤20mΩ/contact
    • Insulation resistance: ≥1,000mΩ at V=100V
    • Withstanding voltage: 300V AC/minute
  • Mechanical:
    • Average insertion force: greater than 60g
    • Average withdrawal force: less than 15g (minimum)
    • Mechanical life cycle: 200 (minimum)
    • Operating temperatures:
      • Gold plated: -55 to 105°C
      • Tin plated: -40 to 105°C
  • Contact material: phosphor bronze
  • Contact plating: Au or Sn over 50μ-inch Ni
  • Insulator material: black polyester UL94V-0
  • Standard: PA6T + 30% GF
  • Current rating: 0.75A/contact (maximum)
  • Contact resistance: ≤20mΩ/contact
  • Insulation resistance: ≥1,000mΩ at V=100V
  • Withstanding voltage: 300V AC/minute
  • Average insertion force: greater than 60g
  • Average withdrawal force: less than 15g (minimum)
  • Mechanical life cycle: 200 (minimum)
  • Operating temperatures:
    • Gold plated: -55 to 105°C
    • Tin plated: -40 to 105°C
  • Gold plated: -55 to 105°C
  • Tin plated: -40 to 105°C
