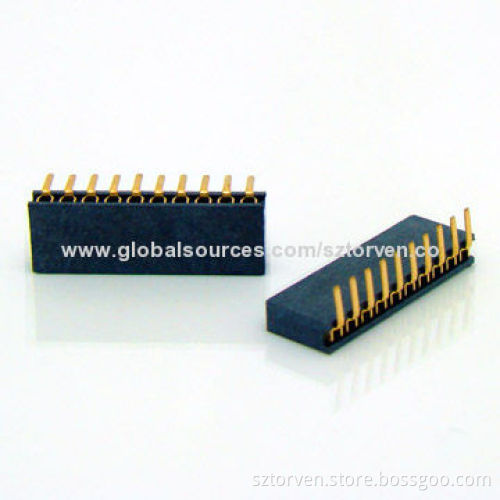

Female Headers, 1.27mm, Single Row, Right Angle, DIP Type, 4.4mm Height, LCP Material, 02 to 40 Pins
  • Female Headers, 1.27mm, Single Row, Right Angle, DIP Type, 4.4mm Height, LCP Material, 02 to 40 Pins
Female Headers, 1.27mm, Single Row, Right Angle, DIP Type, 4.4mm Height, LCP Material, 02 to 40 Pins

Female Headers, 1.27mm, Single Row, Right Angle, DIP Type, 4.4mm Height, LCP Material, 02 to 40 Pins

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Contact: phosphor bronze
    • Contact plating: Au or Sn over 50¼-inch Ni
    • Insulator: black polyester UL94V-0
    • Standard: LCP + 30% GF
  • Electrical:
    • Current rating: 0.75A/contact (maximum)
    • Contact resistance: d20m©/contact
    • Insulation resistance: e1,000M© at V = 100V
    • Withstanding voltage: 300V AC/minute
  • Mechanical:
    • Average insertion force: ≤60g
    • Average withdrawal force: ≥15g (minimum)
    • Lifespan cycle: 200 cycles (minimum)
    • Operating temperatures:
      • Gold-plated: -55 to 105°C
      • Tin-plated: -40 to 105°C
  • Contact: phosphor bronze
  • Contact plating: Au or Sn over 50¼-inch Ni
  • Insulator: black polyester UL94V-0
  • Standard: LCP + 30% GF
  • Current rating: 0.75A/contact (maximum)
  • Contact resistance: d20m©/contact
  • Insulation resistance: e1,000M© at V = 100V
  • Withstanding voltage: 300V AC/minute
  • Average insertion force: ≤60g
  • Average withdrawal force: ≥15g (minimum)
  • Lifespan cycle: 200 cycles (minimum)
  • Operating temperatures:
    • Gold-plated: -55 to 105°C
    • Tin-plated: -40 to 105°C
  • Gold-plated: -55 to 105°C
  • Tin-plated: -40 to 105°C
