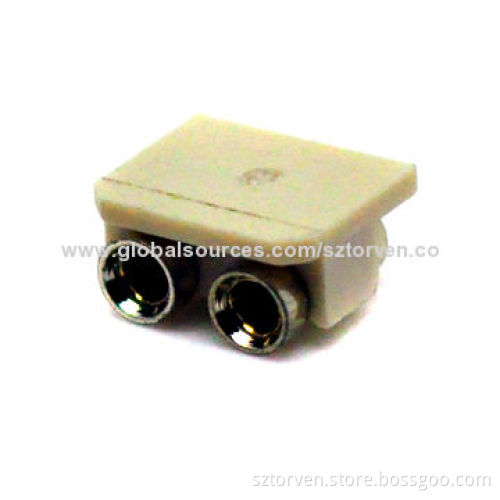

Female header
  • Female header
Female header

Female header

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 4 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 3.75µm/200µ" Sn over 2µm/80µ" nickel
    • Gold plated: Full gold over 2µm/80µ" nickel
  • Plating (contact): gold or tin plated over 2µm/80µ" nickel
  • Insulator (black): glass filled thermoplastic polyester UL94V-0
  • Electrical:
    • Current rating: 3Amps/contact max
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1,000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 4 finger): beryllium copper, heat treated
  • Tin plated: 3.75µm/200µ" Sn over 2µm/80µ" nickel
  • Gold plated: Full gold over 2µm/80µ" nickel
  • Current rating: 3Amps/contact max
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1,000MΩ at V=100V
  • Operating voltage: 60V AC/DC
