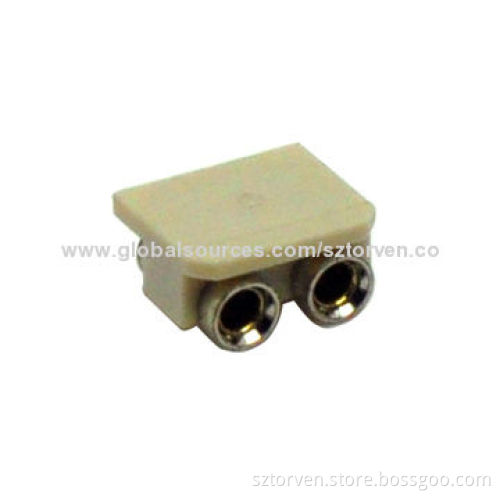

Socket connector, machined PN 2.54mm 2P surface mount with lift cap in tape & reel packing
  • Socket connector, machined PN 2.54mm 2P surface mount with lift cap in tape & reel packing
Socket connector, machined PN 2.54mm 2P surface mount with lift cap in tape & reel packing

Socket connector, machined PN 2.54mm 2P surface mount with lift cap in tape & reel packing

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Material:
    • Pin (outer sleeve): Brass, machined CuZn38Pb2
    • Clip (contact 4 finger): Beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 3.75µm/200µ" Sn over 2µm/80µ" nickel
      • Gold plated: Full gold over 2µm/80µ"Nickel
    • Plating (contact): gold or tin plated over 2µm/80µ" nickel
    • Insulator (black): Glass filled thermoplastic polyester UL94V-0
  • Electrical:
    • Current rating: 3Amps/contact max.
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1,000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Pin (outer sleeve): Brass, machined CuZn38Pb2
  • Clip (contact 4 finger): Beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 3.75µm/200µ" Sn over 2µm/80µ" nickel
    • Gold plated: Full gold over 2µm/80µ"Nickel
  • Plating (contact): gold or tin plated over 2µm/80µ" nickel
  • Insulator (black): Glass filled thermoplastic polyester UL94V-0
  • Tin plated: 3.75µm/200µ" Sn over 2µm/80µ" nickel
  • Gold plated: Full gold over 2µm/80µ"Nickel
  • Current rating: 3Amps/contact max.
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1,000MΩ at V=100V
  • Operating voltage: 60V AC/DC
