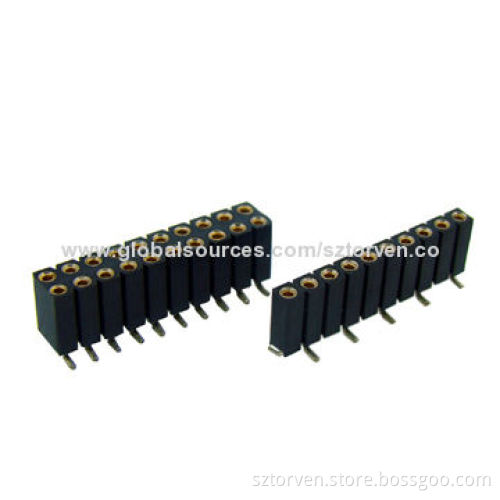

Socket connector, 2.54mm, SMT type, single and dual row, profile H=7.0mm
  • Socket connector, 2.54mm, SMT type, single and dual row, profile H=7.0mm
Socket connector, 2.54mm, SMT type, single and dual row, profile H=7.0mm

Socket connector, 2.54mm, SMT type, single and dual row, profile H=7.0mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 6 finger): beryllium copper, heat treated
    • Plating (outer sleeve):
      • Tin plated: 3.75µm/150µ" Sn over 2µm/80µ" nickel
      • Gold plated: full gold over 2µm/80µ" nickel
      • Plating (contact): full gold or tin plated 2µm/80µ" nickel
      • Insulator (black): glass filled thermoplastic polyester
      • UL94V-0
  • Electrical:
    • Current rating: 3Amps/contact max
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force: <250g
    • With steel pin of diameter 0.7mm- dia. 0.8mm or SQ0.64mm
    • Average withdrawal force: ≥50g
    • With steel pin of diameter 0.7mm- dia. 0.8mm or SQ0.64mm
    • Mechanical life cycle: min.200
    • Operating temperatures:
      • Gold plated: -55 to 105°C
      • Tin plated: -40 to 105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 6 finger): beryllium copper, heat treated
  • Plating (outer sleeve):
    • Tin plated: 3.75µm/150µ" Sn over 2µm/80µ" nickel
    • Gold plated: full gold over 2µm/80µ" nickel
    • Plating (contact): full gold or tin plated 2µm/80µ" nickel
    • Insulator (black): glass filled thermoplastic polyester
    • UL94V-0
  • Tin plated: 3.75µm/150µ" Sn over 2µm/80µ" nickel
  • Gold plated: full gold over 2µm/80µ" nickel
  • Plating (contact): full gold or tin plated 2µm/80µ" nickel
  • Insulator (black): glass filled thermoplastic polyester
  • UL94V-0
  • Current rating: 3Amps/contact max
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force: <250g
  • With steel pin of diameter 0.7mm- dia. 0.8mm or SQ0.64mm
  • Average withdrawal force: ≥50g
  • With steel pin of diameter 0.7mm- dia. 0.8mm or SQ0.64mm
  • Mechanical life cycle: min.200
  • Operating temperatures:
    • Gold plated: -55 to 105°C
    • Tin plated: -40 to 105°C
  • Gold plated: -55 to 105°C
  • Tin plated: -40 to 105°C
