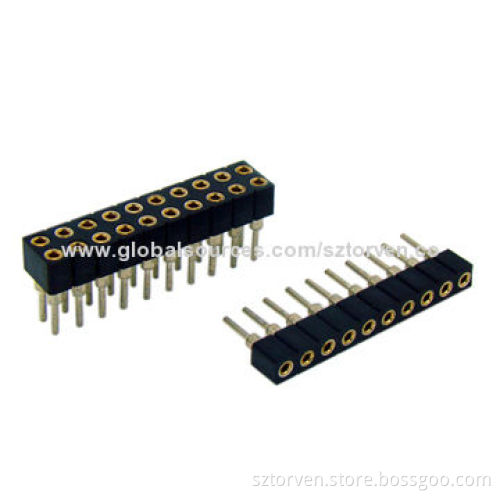

Socket Connectors, 2.0mm, Straight Dip Type, Single and Dual-row, 7.40mm Pin Length
  • Socket Connectors, 2.0mm, Straight Dip Type, Single and Dual-row, 7.40mm Pin Length
Socket Connectors, 2.0mm, Straight Dip Type, Single and Dual-row, 7.40mm Pin Length

Socket Connectors, 2.0mm, Straight Dip Type, Single and Dual-row, 7.40mm Pin Length

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Materials:
    • Pin (outer sleeve): brass, machined CuZn38Pb2
    • Clip (contact 4 finger): beryllium copper, heat-treated
    • Plating (outer sleeve):
      • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
      • Gold plated: 2µm/80µ"Ni, full gold
    • Plating (contact): 2µm/80µ"Ni, gold or tin plated
    • Insulator (black):
      • Glass filled thermoplastic polyester
      • UL94V-0
  • Electrical:
    • Current rating: 1A/contact (maximum)
    • Contact resistance: ≤4mΩ/contact
    • Insulation resistance: ≥1,000MΩ at V=100V
    • Operating voltage: 60V AC/DC
  • Mechanical:
    • Average insertion force with steel pin of %C 0.43mm/0.17-inch: <50g
    • Mechanical lifespan cycle: 200 (minimum)
    • Operating temperature:
      • Gold plated: -55 to +105°C
      • Tin plated: -40 to +105°C
  • Pin (outer sleeve): brass, machined CuZn38Pb2
  • Clip (contact 4 finger): beryllium copper, heat-treated
  • Plating (outer sleeve):
    • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
    • Gold plated: 2µm/80µ"Ni, full gold
  • Plating (contact): 2µm/80µ"Ni, gold or tin plated
  • Insulator (black):
    • Glass filled thermoplastic polyester
    • UL94V-0
  • Tin plated: 2µm/80µ"Ni, 5µm/150µ"Sn
  • Gold plated: 2µm/80µ"Ni, full gold
  • Glass filled thermoplastic polyester
  • UL94V-0
  • Current rating: 1A/contact (maximum)
  • Contact resistance: ≤4mΩ/contact
  • Insulation resistance: ≥1,000MΩ at V=100V
  • Operating voltage: 60V AC/DC
  • Average insertion force with steel pin of %C 0.43mm/0.17-inch: <50g
  • Mechanical lifespan cycle: 200 (minimum)
  • Operating temperature:
    • Gold plated: -55 to +105°C
    • Tin plated: -40 to +105°C
  • Gold plated: -55 to +105°C
  • Tin plated: -40 to +105°C
