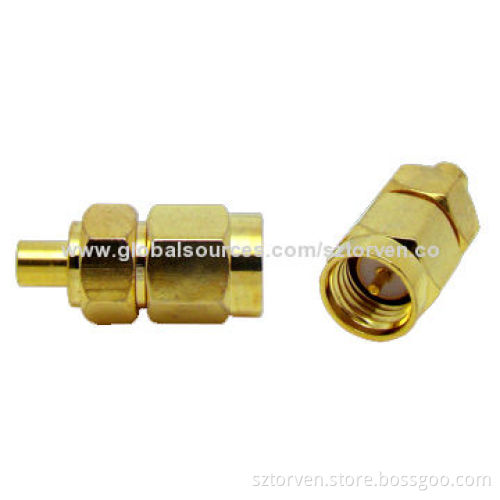

SMA to MCX Connector, StraightNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Working temperatures: -55-155°C (PE cable -40-85°C)

Typical impedance: 50/75Ω

Frequency: DC 4GHz (50Ω), 0-2GGHz (75Ω)

Working voltage: 335V max

Withstanding voltage: 500V rms

Contact resistance:

VSWR straight type: ≤1.25

Elbow: ≤1.45

Mechanical lifespan: ≥500 cycles

Body: brass gold plated

Plug: brass gold plated

Jack: beryllium copper gold plated

Elastic contact: beryllium copper gold plated

Insulator: teflon

Crimping suite: copper alloy tin/gold plated

Inner conductor: ≤6mΩ

Outer conductor: ≤1mΩ

Insulator resistance: ≥1,000MΩ
