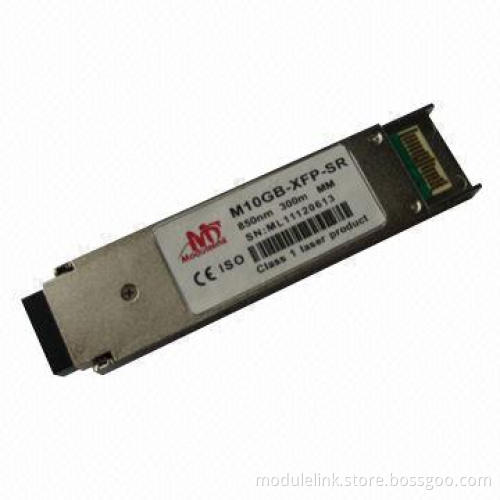

10Gbps XFP Optic Module, 850nm, with Nice EMI Performance, RoHS Directive

10Gbps XFP Optic Module, 850nm, with Nice EMI Performance, RoHS Directive

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Fully compliant to XFP MSA Rev.4.5

Supports of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps

Optic transceiver compliant to fiber channel 1200-M5-SN-l,1200-M5E-SN-l, 1200-M6-SN-l at 10.51875Gbps

Transmission distance up to 82m (50¼m MMF) or 300m(high-bandwidth MMF, 2,000MHz x km)

Low power consumption: 1.5W (typical)

Wide operating temperature range: 0 to 70°C

Laser class 1M compliant

Vertical cavity surface emitting laser at 850nm (VCSEL)

LC duplex connector

XFI loopback supported

Lead-free

Compliant with RoHS Directive

Nice EMI performance

XFP optic module high reliability

Descriptions and applications:

Multipurpose optical transceiver module for 10Gbps datatransmission applications at 850nm

Ideally suited for 10Gbps data com (belly-to-belly forhigh-density applications) and storage area network (SAN/NAS)applications based on IEEE 802.3ae and fiber channel standardsdesigned for short range distances transceiver module comprisestransmitter with vertical cavity surface emitting laser (VCSEL) andreceiver with PIN photo diode transmitter and receiver are separatewithin wide temperature range of 0 to 70°C and offers optimumheat dissipation and excellent electromagnetic shielding thusenabling high-port densities for XFP transceiver 10GbE system
