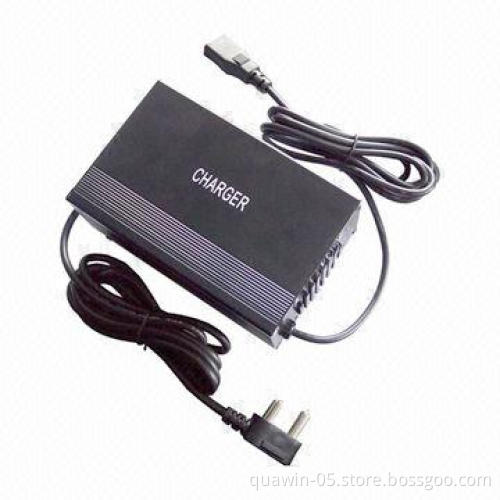

60V 3A Lead Acid Battery Charger

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Input:

Output:

Rating input voltage: 110-120 or 200-240V AC, 50-60Hz

Input voltage range: 100-132 or 180-264V AC

Rating input current: 2.0Arms, 220V AC

Maximum input power: 260W

Rating output voltage: 68.8V

Output voltage range: 30-75V DC

Suit with battery type: 60V, 9.0-30.0Ah VRLA

Charging current (stage 1): 3.0A+ -0.3A@60V

Charging voltage (stage 2): 72 +/-0.3V

Floating voltage (stage 3): 68.7 +/-0.30V

Cut-off current (stage 2 to 3): <0.60+-0.2A

Typical charging time: 8 hours

Maximum output power: 216W

Hold-on time: NC

Input: 220V AC

Output: full load

Ripple current: 600mA

Input: 220V AC

Output: full load

Charge finish condition: V>70V +I<0.6A

LED colors:

Red: charging

Green: finish/idle

Output protects: over-current, -voltage and reverse inputprotection

Efficiency: 80% (minimum), at maximum load
