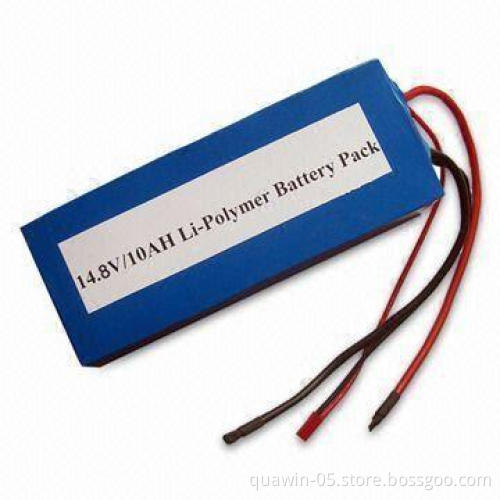

Li-polymer Battery Pack with 14.4V Voltage and 10Ah Capacity
  • Li-polymer Battery Pack with 14.4V Voltage and 10Ah Capacity
Li-polymer Battery Pack with 14.4V Voltage and 10Ah Capacity

Li-polymer Battery Pack with 14.4V Voltage and 10Ah Capacity

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Type: polymer Lithium-ion
  • Model: 9759156C (4SCell adding wire)
  • Typical capacity: 10,000mAh + 5% (0.2C/5A discharge)
  • Nominal voltage: 14.8V (average voltage at 0.2C/5A discharge)
  • Charge current:
    • Standard: 0.2C/5A
    • Maximum: 1C/5A (working temperature: -20 to 45°
    • Charge cut-off voltage: 16.8 ±0.05V
    • Discharge current:
      • Continuously: 35A
      • Maximum: 60A (Working temperature: -20 to 60°)
      • Discharge cut-off voltage: 11V
      • Cell voltage: 15.1 to 15.6V (when leave factory)
      • Impedance: ≤18mΩ(AC 1kHz after 50% charge)
      • Maximum pack dimension: 49 x 67 x 158mm3
      • Weight: approximately 930g
  • Standard: 0.2C/5A
  • Maximum: 1C/5A (working temperature: -20 to 45°
  • Charge cut-off voltage: 16.8 ±0.05V
  • Discharge current:
    • Continuously: 35A
    • Maximum: 60A (Working temperature: -20 to 60°)
    • Discharge cut-off voltage: 11V
    • Cell voltage: 15.1 to 15.6V (when leave factory)
    • Impedance: ≤18mΩ(AC 1kHz after 50% charge)
    • Maximum pack dimension: 49 x 67 x 158mm3
    • Weight: approximately 930g
  • Continuously: 35A
  • Maximum: 60A (Working temperature: -20 to 60°)
  • Discharge cut-off voltage: 11V
  • Cell voltage: 15.1 to 15.6V (when leave factory)
  • Impedance: ≤18mΩ(AC 1kHz after 50% charge)
  • Maximum pack dimension: 49 x 67 x 158mm3
  • Weight: approximately 930g
