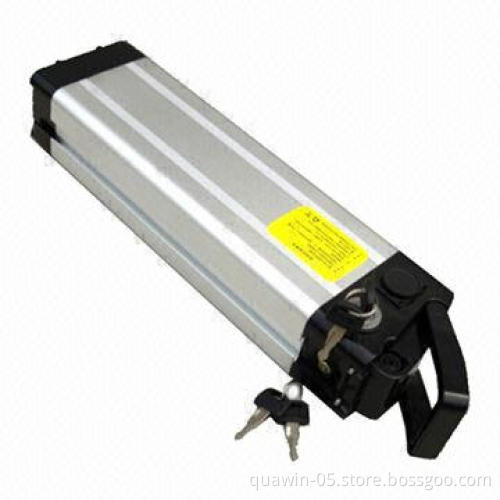

18650 Lithium Ion Battery Pack, 36V, 10Ah

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model: TL-CLBP3610YE270

Cell type: 18650 domestic Li-ion

Nominal voltage: 36V

Rated capacity; 10Ah (0.5C2A discharge)

Internal resistance; ≤160mΩ (AC1kHz AC impedance)

Weight: about 5kg

Dimensions: 95x91x386mm (LxWxH)

Charge/discharge mode: CC/CV

Cycle life: ≥2000 times

Battery: hi-power retention (power storage: one month) ≥95%

Certifications: RoHS,CE

Warranty: 12 months

Applications: electric bike, E-scooter and more

Standard charging current: 2A

Maximum discharging current: 3.5A

Maximum charging voltage: 42V

Standard discharging current: 5A

Maximum discharging current: 20A

Discharging cut-off voltage: 30V

Overcharging protection voltage: 4.25 ±0.03V

Over-discharging voltage protection: 2.5 ±0.1V

Over-current protection current: ≥40A

Over-current protection delay: Working temperature: 0-45°C

Discharging temperature: -20-55°C
