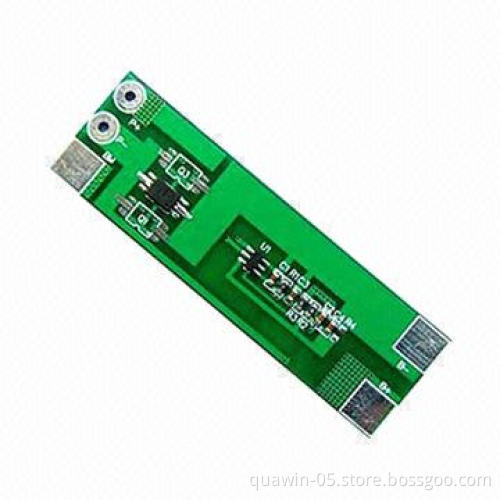

PCM/BMS for 2S Li-ion/Li-polymer/LiFePO4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Size: (L)60x(W)18x(T)2.5mm

Current: 8A

Suitable for 2S Li-ion/Li-polymer/LiFePO4 battery pack

Charging voltage:

Balance voltage for single cell

Balance current for single cell

Current consumption for single cell: ≤25A

Maximum continuous charging current: 8A

Over-charge protection and over-charge detection voltage: 3.8 to 4.4V (can adjust)

Over-charge detection delay time: 0.96 to 1.4s

Over-charge release voltage: 3.8 to 4.4V (can adjust)

Over-discharge protection and over-discharge detection voltage: 1.9 to 3.1V (can adjust)

Over-discharge detection delay time: 115 to 173ms

Over-discharge release voltage: 1.9 to 3.1V (can adjust)

Over-current protection and over-current detection voltage: 0.06 to 0.3V

Over-current detection current: 20 to 30A (can adjust)

Detection delay time: 7.2 to 11ms

Release condition: cut load

Short protection detection condition: exterior short-circuit

Detection delay time: 200 to 500μs

Release condition: cut load

Resistance protection circuitry (B- to P-): ≤30mΩ

CC/CV: Li = 4.2V/cell and LFP = 3.6V/cell
