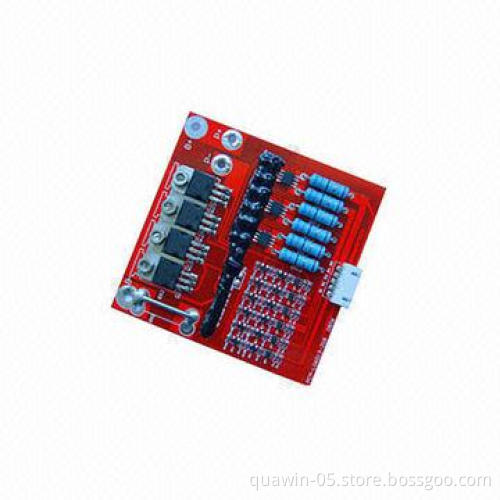

Protection Circuit Board for 6s/LiFePo4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Voltage charging voltage: 21.6V DC, 3.6V/cell

Balance voltage for single cell: 3.60 ±0.025V

Current balance current for single cell: 52 ±5mA

Low current consumption for single cell: ≤20μA

Maximal continuous charging current: 10A

Maximal continuous discharging current: 10A

Over-charge protection/over-charge detection voltage: 3.90±0.025V

Over-charge detection delay time: 0.96 to 1.4s

Over-charge release voltage: 3.80 ±0.05V

Over-discharge protection/over-discharge detection voltage:2.00 ±0.05V

Over-discharge detection delay time: 115 to 173ms

Over-discharge release voltage: 2.3 ±0.05V

Over-current protection/over-current detection voltage:0.62V

Over-current detection current: 50 ±10A

Detection delay time: 7.2 to 11ms

Release condition cut load

Short protection detection condition exteriorshort-circuit

Detection delay time: 200 to 500μs

Resistance protection circuitry: ≤30mΩ

Temperature operating temperature range: -40 to +85°C

Storage temperature range: -40 to +125°C
