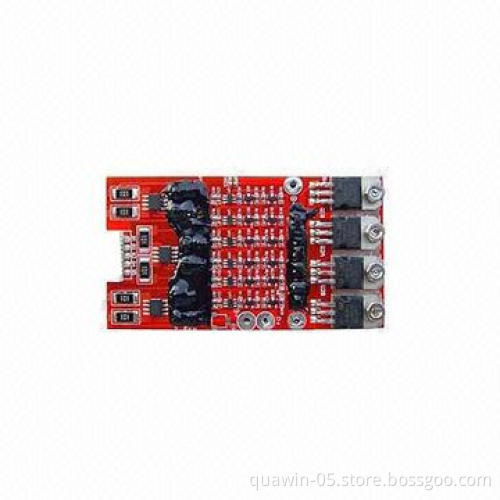

PCM/BMS for 6S Lithium Polymer Battery/LiFePO4 Battery Pack with Balance Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximal continuous discharging current: 10A

Size: 85*47*10mm

Charging voltage: DC 25.2V, CC/CV (4.2v*6)

Balance voltage for single cell: 4.20V, ±0.025V

Current balance current for single cell: 42mA, ±5mA

Current consumption for single cell: d50¼A

Maximal continuous discharging current: 10A

Over-charge detection voltage: 4.325, ±0.025V

Over charge detection delay time: 0.96S-1.4S

Over-charge release voltage: 4.075, ±0.025V

Over discharge detection voltage: 2.50, ±0.05V

Over discharge detection delay time: 115-173ms

Over discharge release voltage: 2.9, ±0.05V

Over-current detection voltage: 0.62V

Over-current detection current: 50,±50A(adjustable)

Detection delay time: 7.2ms-11ms

Release condition: automatic recovery

Short protection detection:

Condition exterior short-circuit

Detection delay time: 200-500us

Release condition: automatic recovery

Temperature operating temperature range: -40-+85°C

Storage temperature range: -40-+125°C
