BMS/PCM 6s Li-ion, LiFePO4 Battery Packs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximal continuous discharging current 7A

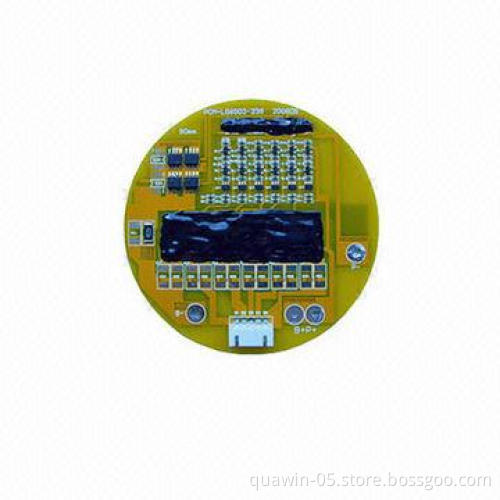

PCM-L06S3-239 (6S)

Over current detection current: 27A-33A

Voltage charging voltage DC: 21.6V CC/CV (3.6V)

Balance voltage for single cell

Current balance current for single cell

Current consumption for single cell: 20¼A

Maximal continuous discharging current: A

Overcharge protection:

Over current protection:

Short protection detection condition: exterior shortcircuit

Detection delay time: 200-500us

Release condition: automatic recovery

Resistance protection: circuitry d50m©

Temperature:

Size: ¦90mm

Over charge detection voltage: 3.90 ± 0.025V

Over charge detection delay time: 0.96-1.4S

Over charge release voltage: 3.80 ± 0.025V

Over-discharge protection over discharge detection voltage: 2.0± 0.05V

Over discharge detection delay time: 115-173mS

Over discharge release voltage: 2.3 ± 0.05V

Over current detection voltage: 0.62V

Over current detection current: 30 ± 3A(adjustable)

Detection delay time: 7.2-11ms

Release condition: automatic recovery

Operating temperature range: -40 + 85

Storage temperature range: -40 + 125
