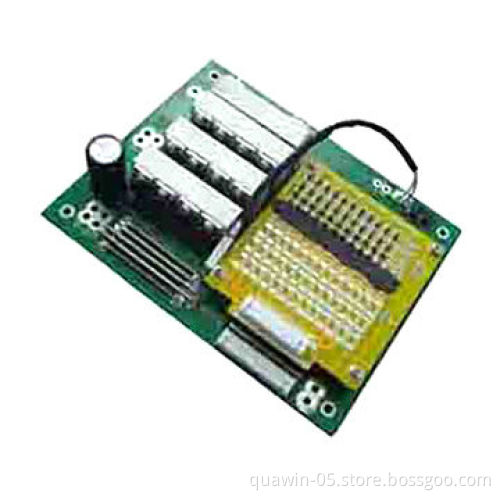

Protection Circuit Module for 26S Li-ion/LiFePO4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Maximal continuous charging and discharging current: 60A

Voltage:

Current:

Maximal continuous charging and discharging current:

Over-charge protection:

Over-discharge protection:

Over-current protection:

Charging voltage: CC/CV: Li-ion/Li-polymer (4.2V/cell) and LiFePO4 (3.6V/cell)

Balance voltage for single cell Li-ion: 4.20, ±0.025Vand LiFePO4 3.60, ±0.025V

Balance current for single cell 0-300mA

Balance current for single cell d20¼A

Charge: 20A

Discharge: 60A

Detection voltage: 3.8-4.4V (adjustable)

Detection delay time: 0.5-2.5s

release voltage: 3.8-4.4V (can adjust)

Detection voltage: 1.9-3.1V (adjustable)

Detection delay time: 50-300ms

Release voltage: 1.9-3.1V (can adjust)

Detection voltage: 0.6V

Detection current: 100-500A

Detection delay time: 1-50ms

Release condition: cut load

Short-protection detection: condition exterior short-circuit

Detection delay time: 200-500us

Release condition: cut load

Resistance protection circuit: (B- to P-): d20m

Operating temperature range: -40 to +85°

Storage temperature range: -40 to +125°

Size (L x W x T): 154 x 120 x 30mm
