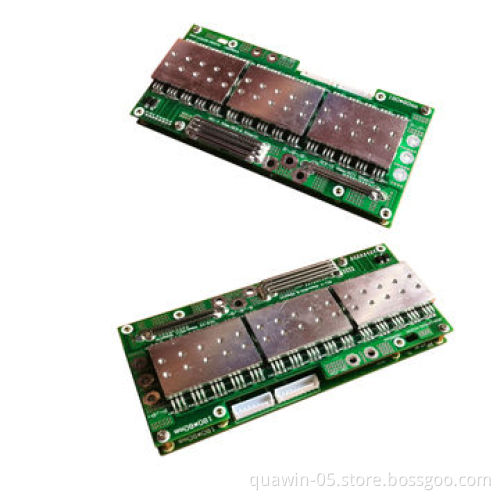

Protection Circuit Module for 1S Li-ion/Li-polymer/LiFePO4 Battery Pack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Voltage:

Over-charge protection:

Over-discharge protection:

Over-current protection:

Short protection detection condition:

Temperature:

Size Φ14mm

Charging voltage: CC/CV

Li-ion/Li-polymer (4.2V/cell)

LiFePO4 (3.6V/cell)

Balance voltage for single cell

Current balance current for single cell

Balance current for single cell: ≤10μA

Maximal continuous charging and discharging current: 2.5A

Over-charge detection voltage: 3.8-4.4V (can adjust)

Over-charge detection delay time: 0.5-2.5S

Over-charge release voltage: 3.8-4.4V (can adjust)

Over-discharge detection voltage: 1.9-3.1V (can adjust)

Over-discharge detection delay time: 50-300mS

Over-discharge release voltage: 1.9-3.1V (can adjust)

Over-current detection voltage: 0.06-0.6V

Over-current detection current: 1-5A

Detection delay time: 1-50ms

Release condition: cut load

Exterior short circuit

Detection delay time: 200-500us

Release condition: cut load

Resistance protection circuitry (B- to P-): ≤60mΩ

Operating temperature range: -40-+85°C

Storage temperature range: -40-+125°C
