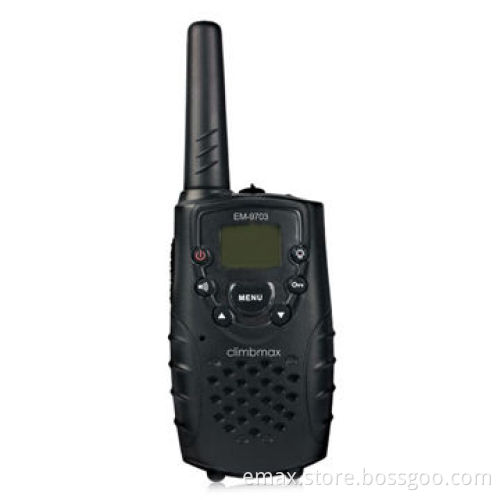

PMR and FRS Radio with Belt Clip and 150, 30mA Current Consumption
  • PMR and FRS Radio with Belt Clip and 150, 30mA Current Consumption
PMR and FRS Radio with Belt Clip and 150, 30mA Current Consumption

PMR and FRS Radio with Belt Clip and 150, 30mA Current Consumption

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • General:
      • Communication range: up to 2 miles （3km )
      • Frequency ranges:
        • 462.5625 to 467.7125MHz (USA FRS)
        • 462.5625 to 467.7250MHz (Canada GMRS)
        • 446.00625 to 446.09375MHz (Europe PMR)
      • Channel spacing: 25KHz (USA FRS) and 12.5KHz (Europe PMR)
      • Main channel: 01 to 14 (USA FRS), 01 to 08 (Europe PMR)
      • CTCSS sub-channels: 00 to 38
    • Transmitter:
      • RF power: 500mW(ERP)
      • Frequency deviation: 2.5KHz (maximum)
      • Frequency distortion: 5% (maximum)
      • S/N ratio: 40dB (maximum)
      • Harmonic and spurious attenuation: >50dB
      • Current consumption: 300, 30mA
    • Receiver:
      • Sensitivity: 0.33mV at 12dB SINAD
      • Selectivity: 50dB (minimum)
      • Squelch sensitivity: 0.25mV typical
      • Spurious rejection: 50dB (minimum)
      • Inter modulation rejection: 50dB (minimum)
      • S/N ratio: 40dB (minimum)
      • Audio output power: 150mW at 16Ω, <10%THD
      • Current consumption: 150, 30mA
  • Accessories:
    • Belt clip, user's manual
  • Optional accessories:
    • Rechargeable battery, earphones, AC adapter and base charge
  • General:
    • Communication range: up to 2 miles （3km )
    • Frequency ranges:
      • 462.5625 to 467.7125MHz (USA FRS)
      • 462.5625 to 467.7250MHz (Canada GMRS)
      • 446.00625 to 446.09375MHz (Europe PMR)
    • Channel spacing: 25KHz (USA FRS) and 12.5KHz (Europe PMR)
    • Main channel: 01 to 14 (USA FRS), 01 to 08 (Europe PMR)
    • CTCSS sub-channels: 00 to 38
  • Transmitter:
    • RF power: 500mW(ERP)
    • Frequency deviation: 2.5KHz (maximum)
    • Frequency distortion: 5% (maximum)
    • S/N ratio: 40dB (maximum)
    • Harmonic and spurious attenuation: >50dB
    • Current consumption: 300, 30mA
  • Receiver:
    • Sensitivity: 0.33mV at 12dB SINAD
    • Selectivity: 50dB (minimum)
    • Squelch sensitivity: 0.25mV typical
    • Spurious rejection: 50dB (minimum)
    • Inter modulation rejection: 50dB (minimum)
    • S/N ratio: 40dB (minimum)
    • Audio output power: 150mW at 16Ω, <10%THD
    • Current consumption: 150, 30mA
  • Communication range: up to 2 miles （3km )
  • Frequency ranges:
    • 462.5625 to 467.7125MHz (USA FRS)
    • 462.5625 to 467.7250MHz (Canada GMRS)
    • 446.00625 to 446.09375MHz (Europe PMR)
  • Channel spacing: 25KHz (USA FRS) and 12.5KHz (Europe PMR)
  • Main channel: 01 to 14 (USA FRS), 01 to 08 (Europe PMR)
  • CTCSS sub-channels: 00 to 38
  • 462.5625 to 467.7125MHz (USA FRS)
  • 462.5625 to 467.7250MHz (Canada GMRS)
  • 446.00625 to 446.09375MHz (Europe PMR)
  • RF power: 500mW(ERP)
  • Frequency deviation: 2.5KHz (maximum)
  • Frequency distortion: 5% (maximum)
  • S/N ratio: 40dB (maximum)
  • Harmonic and spurious attenuation: >50dB
  • Current consumption: 300, 30mA
  • Sensitivity: 0.33mV at 12dB SINAD
  • Selectivity: 50dB (minimum)
  • Squelch sensitivity: 0.25mV typical
  • Spurious rejection: 50dB (minimum)
  • Inter modulation rejection: 50dB (minimum)
  • S/N ratio: 40dB (minimum)
  • Audio output power: 150mW at 16Ω, <10%THD
  • Current consumption: 150, 30mA
  • Belt clip, user's manual
  • Rechargeable battery, earphones, AC adapter and base charge
