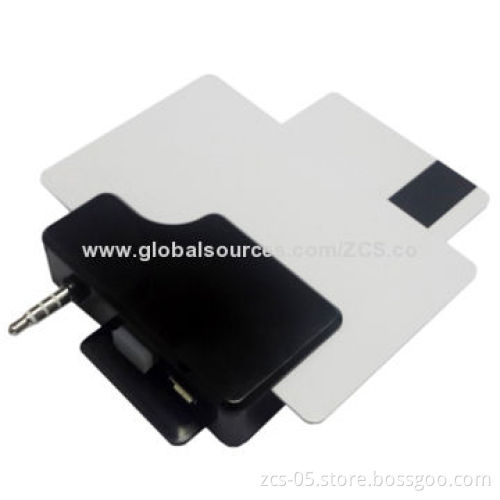

New Design Bidirectional Mobile Credit Card Readers with Headphone Jack, for iPhone and Android

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Reference standards:

Swipe speed: 3 to 60-inch per second, bidirectional

Track positions: 1 and 2

Card thickness: 0.76 to 1.2mm

Interface: audio headphone jack

Compatibility: system iOS series, Android, WP7/WP8

Phone HTC, Samsung, Motorola, CoolPad, Hedy, iPhone/iPod/iPad, Windows phone series

Compliant with FCC, CE and EMV2000 standards

Operating temperature: 0 to 55°C (32 to 131°F) non-condensing

Storage temperature: -30 to 70°C (-22 to 158°F) non-condensing

LED lights From left to right, IC power indicator, insert IC indicator, charge indicator

IC power indicator light on means the IC card is powered on

Insert IC indicator light on means IC card inserted correctly

Charge indicator lights flashing, which means in charge, lights stop flashing, which means charging is complete

Working power: Li-ion battery power

Battery capacity: 120/200mAh

Battery lifespan: more than 500 cycles

Rated voltage: 3V DC

Idle current: 0.01μA

Standby current: 4.5mA

Charging current: 100mA

Working current: magnetic card 7mA

IC card: 25mA

Working hours: can continuous operation the IC card for more than 6 hours

Charging time: less than 3 hours

Relative humidity: maximum 95% non-condensing, dry storage

Operating lifespan: magnetic header approximately 300,000 passes

IC header: approximately 100,000 passes

Dimensions: 60 x 40 x 17mm

Weight: 60g

Read error rate: less than 1%

Magnetic card ISO 7811, AMMVA, CADMV and other formats

IC card ISO-7816 class A,B and C
