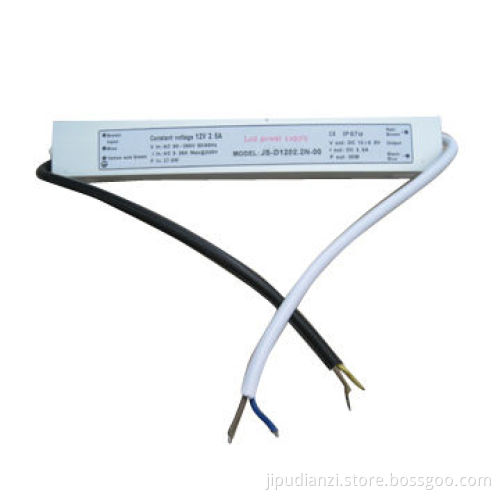

12V 1.5A rainproof LED switching power supplyNew
  • 12V 1.5A rainproof LED switching power supplyNew
12V 1.5A rainproof LED switching power supplyNew

12V 1.5A rainproof LED switching power supplyNew

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Features:
    • 90-132VAC input only
    • Fully encapsulated with IP67 level (Note.5)
    • Protections: short circuit/over load/over voltage/over temperature
    • Cooling by free air convection
    • Class two power unit, no FG
    • Pass LPS
    • suitable for LED lighting and moving sign applications
    • 100% full load burn-in test
    • Low cost, high reliability
  • Specifications:
    • Input:
      • Voltages:AC 85-264V
      • Frequencies: 50-60Hz
      • Impulse current: 30A/115V, 60A/230V
      • Input current:
      • P<=100W: 2A/115V/1A/230V
      • 101 - 200W: 3A/115V/1.5A/230V
      • 201 - 400W: 5A/115 2.5A/230V
    • Output:
      • Voltage: 12VDC
      • Voltage regulation (full load) 5%
      • Output voltage can be adjusted:±10%
      • Wave and noise:120mVp-p
      • Efficiency: 85%
      • Current: 1.5A
      • Power: 18W
  • Protection functions:
    • Over-voltage protection: 105 - 150% of the rated voltage
    • Over-current protection: 105 - 150%
    • Under-voltage protection: Under 80%
    • Protection level (waterproof level): 20
    • Rainproof level: 60
  • Insulation intensity:
    • Input-output: 2,000VAC/min
    • Input-ground: 1,500VAC/min
    • Output-ground: 500VAC/min
    • Isolation resistance: Input-output 500VDC-100mΩ
  • Environmental:
    • Temperature coefficient: 0.01%(0-50°C)
    • Humidity coefficient: 0.01%/(20 ~ 90% RH)
    • Working temperature and humidity: –20~60°C/20~90%RH
    • Storage temperature and humidity: –40~85°C/10~95%RH
    • Height above sea level: leq 2000M
  • Without fan
  • Natural cooling air convection
  • Vibration:10~500Hz,2G 10min./1cycle, period for 60min, each axes
  • Safety standards:
  • According with GB4943, UL60950-1,EN60950-1 standards
  • EMC standards
  • According with GB9254, EN55022 class A EN61347-2-13:2008 standards
  • Size (mm): 78(L)*570(W)*42(H)
  • Weight: 370g/PCS
  • Package: 100pcs/A box
  •  Why choose us:
    • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
    • Large production capacity, short delivery
    • Strict QC checking before delivery
    • OEM/ODM service available, help you on designing
    • 7*24 hours online services and after sale service
    • Prompt quotation for your inquiry
  • 90-132VAC input only
  • Fully encapsulated with IP67 level (Note.5)
  • Protections: short circuit/over load/over voltage/over temperature
  • Cooling by free air convection
  • Class two power unit, no FG
  • Pass LPS
  • suitable for LED lighting and moving sign applications
  • 100% full load burn-in test
  • Low cost, high reliability
  • Input:
    • Voltages:AC 85-264V
    • Frequencies: 50-60Hz
    • Impulse current: 30A/115V, 60A/230V
    • Input current:
    • P<=100W: 2A/115V/1A/230V
    • 101 - 200W: 3A/115V/1.5A/230V
    • 201 - 400W: 5A/115 2.5A/230V
  • Output:
    • Voltage: 12VDC
    • Voltage regulation (full load) 5%
    • Output voltage can be adjusted:±10%
    • Wave and noise:120mVp-p
    • Efficiency: 85%
    • Current: 1.5A
    • Power: 18W
  • Voltages:AC 85-264V
  • Frequencies: 50-60Hz
  • Impulse current: 30A/115V, 60A/230V
  • Input current:
  • P<=100W: 2A/115V/1A/230V
  • 101 - 200W: 3A/115V/1.5A/230V
  • 201 - 400W: 5A/115 2.5A/230V
  • Voltage: 12VDC
  • Voltage regulation (full load) 5%
  • Output voltage can be adjusted:±10%
  • Wave and noise:120mVp-p
  • Efficiency: 85%
  • Current: 1.5A
  • Power: 18W
  • Over-voltage protection: 105 - 150% of the rated voltage
  • Over-current protection: 105 - 150%
  • Under-voltage protection: Under 80%
  • Protection level (waterproof level): 20
  • Rainproof level: 60
  • Input-output: 2,000VAC/min
  • Input-ground: 1,500VAC/min
  • Output-ground: 500VAC/min
  • Isolation resistance: Input-output 500VDC-100mΩ
  • Temperature coefficient: 0.01%(0-50°C)
  • Humidity coefficient: 0.01%/(20 ~ 90% RH)
  • Working temperature and humidity: –20~60°C/20~90%RH
  • Storage temperature and humidity: –40~85°C/10~95%RH
  • Height above sea level: leq 2000M
  • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
  • Large production capacity, short delivery
  • Strict QC checking before delivery
  • OEM/ODM service available, help you on designing
  • 7*24 hours online services and after sale service
  • Prompt quotation for your inquiry
