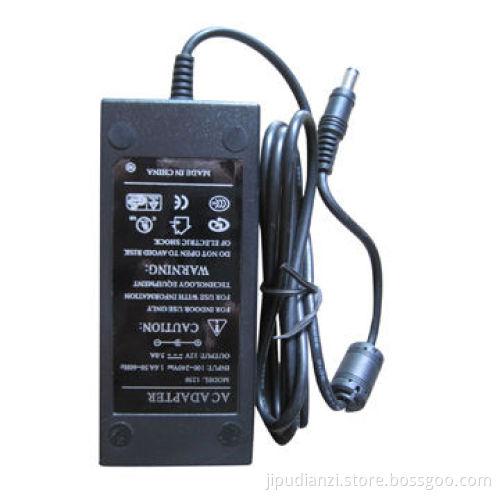

AC 100-240V Power Adapter DC 12V 5A for LCD Screen

AC 100-240V Power Adapter DC 12V 5A for LCD Screen

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Company file:

Shenzhen JiPu electronic co., Ltd is a professional manufacturer of switching power supply, with independent research and development, production, and has its own SMT dust-free workshop and sales agency. Company's product specification is various and of beautiful appearance. Company product design in strict accordance with the safety standards: IEC950, kk60335, 61558, 61558, UL1950 EN60335, 1310, 1012, and fully meet (PSE) UL, CE, 3c, TUV, GS, EK certificates and so on

Features:

Lightweight and compact design

RoHS Directive-compliant power supply fully conform to the requests of the energy star

High power density, super safe design, perfect protection function

Scope of applications: Mobile device, LED lighting products, audio and video products, POS machine, security equipment, household appliances

Green mode

Meets CEC regulations

No load power consumption less than 0.1W

Reliability:

Average time between failures: 25°C ambient temperature and maximum working load

Average time between failures: 5000 hours

Input:

Voltages: 90-264V AC

Frequency range: 47 to 50/60-63Hz

Input current: 1.2A (maximum) 100/240V AC

Surge current: 100V AC/30A (maximum) 240V AC/60A (maximum) Leakage current: 0.25mA maximum

Output:

Over voltage protection

Over current protection: 110 to 200% rated load, have the function of automatic recovery

Short circuit protection:

Working temperature: 0 to 40°C

Storage temperature: 20 to 60°C

Humidity: 5 to 95% HR

Conduction and radiation test: CE: EN 55022:2010

FCC: part 15

Harmonic testing: EN 61000-3-3:2008

Voltage change test: EN 61000-3-3:2008

Electromagnetic compatibility:

Static test: EN 61000-4-2

Radiation tolerance test: EN 61000-4-3

Electronic rapid pulse test: EN 61000-4-4

Lightning test: EN 61000-4-5

The conduction resistance test: EN 61000-4-6

Voltage dip test: EN 61000-4-11

Packaging & delivery

Packaging detail: Each one in a OPP bag

Delivery detail: 7-15 days

Advantages:

1.8-year focus on the AC DC power adapter research and development, production

For control the quality, we have professional test from the raw material to finished products to control the quality seriously

Can offer wholesale factory prices, after-sale guaranteed

Flexible and fast delivery, bulk orders usually delivery within one weeks, general small batch orders can be arranged delivery within 1-3 days, cause we usually have large quantity of PCB in stock

Static test: EN 61000-4-2
