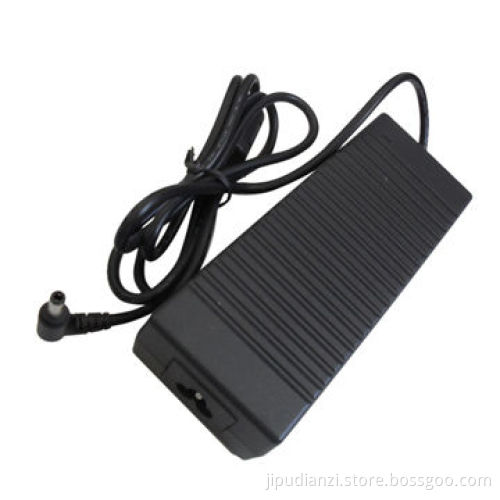

Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks
  • Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks
  • Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks
Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks
Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks

Best sell AC/DC switching adapters 65watt switching AC/DC adapters for notebooks

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Product features:
    • Lightweight, compact design
    • RoHS power supply, fully conform to the requirements of the energy star
    • High power density
    • Super safe design, perfect protection function
  • Scope of application:
    • Mobile device, LED lighting products, Audio and video products, ADSL, STB household appliances
  • Green mode:
    • Meet CEC regulations and RoHS compliance
    • No load power consumption: less than 0.1W
    • Reliability
    • Average time between failures
    • At 25°C ambient temperature, the maximum working load
    • The average time between failures, 5,000 hours
  • Input:
    • Input voltages: 90-264V AC
    • Frequency: 47-50/60-63Hz
    • Input current: 0.4A (maximum) 100/240V AC
    • Surge current: at 100V AC/30A maximum at 240V AC/60A maximum
    • Leakage current: 0.25mA maximum
  • Output:
    • Over-voltage protection
    • Over-current protection: 110-200% rated load, have the function of automatic recovery
    • Short-circuit protection
  • Working temperatures: 0-40°C
  • Storage temperatures: 20-60°C
  • Humidity enrichment conditions, humidity of 5-95%
  • Electromagnetic interference
  • Conduction, radiation test:
    • CE: EN55022:2010
    • FCC: Part 15
    • Harmonic testing: EN 61000-3-2:2006, A2:2009
    •  Voltage change test: EN 61000-3-3:2008
    • Electromagnetic compatibility
    • Static test: EN61000-4-2
    • Radiation tolerance test: EN61000-4-3
    • Electronic rapid pulse test: EN61000-4-4
    • Lightning test: EN61000-4-5
    • Conduction resistance test: EN61000-4-6
    • Voltage dip test: EN61000-4-11
  • UL standards:
    • EN60950-1, UL60950-1
  • Safety certification:
    • CB TUV/GS UL/CUL/KC/SAA/PSE/CE/FCC/C-TICK
  • Packaging & delivery:
    • Packaging detail: 1pc/polybag, 30~60pcs/carton
    • Delivery detail: 1-2 days
  • Why choose us:
    • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
    • Large production capacity, short delivery
    • Strict QC checking before delivery
    • OEM/ODM service available, help you on designing
    • More than 9 years experiences in USB cable and connector field
  • Lightweight, compact design
  • RoHS power supply, fully conform to the requirements of the energy star
  • High power density
  • Super safe design, perfect protection function
  • Mobile device, LED lighting products, Audio and video products, ADSL, STB household appliances
  • Meet CEC regulations and RoHS compliance
  • No load power consumption: less than 0.1W
  • Reliability
  • Average time between failures
  • At 25°C ambient temperature, the maximum working load
  • The average time between failures, 5,000 hours
  • Input voltages: 90-264V AC
  • Frequency: 47-50/60-63Hz
  • Input current: 0.4A (maximum) 100/240V AC
  • Surge current: at 100V AC/30A maximum at 240V AC/60A maximum
  • Leakage current: 0.25mA maximum
  • Over-voltage protection
  • Over-current protection: 110-200% rated load, have the function of automatic recovery
  • Short-circuit protection
  • CE: EN55022:2010
  • FCC: Part 15
  • Harmonic testing: EN 61000-3-2:2006, A2:2009
  •  Voltage change test: EN 61000-3-3:2008
  • Electromagnetic compatibility
  • Static test: EN61000-4-2
  • Radiation tolerance test: EN61000-4-3
  • Electronic rapid pulse test: EN61000-4-4
  • Lightning test: EN61000-4-5
  • Conduction resistance test: EN61000-4-6
  • Voltage dip test: EN61000-4-11
  • EN60950-1, UL60950-1
  • CB TUV/GS UL/CUL/KC/SAA/PSE/CE/FCC/C-TICK
  • Packaging detail: 1pc/polybag, 30~60pcs/carton
  • Delivery detail: 1-2 days
  • More than 80 sets of advanced connectors & assembly cables machines and testing equipment
  • Large production capacity, short delivery
  • Strict QC checking before delivery
  • OEM/ODM service available, help you on designing
  • More than 9 years experiences in USB cable and connector field
