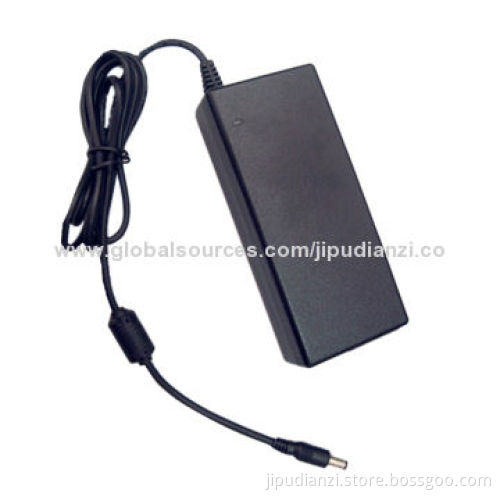

100W power adapter, compact design

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Lightweight and compact designs
RoHS power supply, fully conforms to requirement of energy star
High power density
Super safe design and perfect protection function

Scope of applications:

Mobile device
LED lighting products
Audio and video products
POS machine
Security equipment
Household appliances

Green mode

Meets CEC regulation

RoHS Directive-compliant

No-load power consumption: less than 0.1W

Reliability

Average time between failures

Ambient temperature: 25°C, maximum working load

Average time between failures, 5000 hours

Input:

Input voltage: 90-264V AC
Frequency: 47-50/60-63Hz
Input current: 1.8A (maximum), 100/240V AC
Surge current: 100, 30 and 240V AC, 60A (maximum)
Leakage current: 0.25mA (maximum)

Output:

Over-voltage protection
Over-current protection: 110-200% rated load, have function of automatic recovery
Short-circuit protection

Working temperature: 0 to + 40°C

Storage temperature: 20 to + 60°C

Humidity enrichment conditions: 5 to 95% RH

Electromagnetic interference:

Conduction, radiation test: CE:EN 55022:2010 and FCC:part 15
Harmonic testing: EN 61000-3-2:2006 + A2:2009
Voltage change test: EN 61000-3-3:2008

Electromagnetic compatibility:

Static test: EN 61000-4-2
Radiation tolerance test: EN 61000-4-3
Electronic rapid pulse test: EN 61000-4-4
Lightning test: EN 61000-4-5
Conduction resistance test: EN 61000-4-6
Voltage dip test: EN 61000-4-11
UL standards: EN 60950-1 and UL 60950-1
CB/TUV/GS/UL/cUL/KC/SAA/PSE
CE/FCC/C-TICK

Lightweight and compact designs

RoHS power supply, fully conforms to requirement of energy star

High power density

Super safe design and perfect protection function

Mobile device

LED lighting products

Audio and video products

POS machine

Security equipment

Household appliances

Input voltage: 90-264V AC

Frequency: 47-50/60-63Hz

Input current: 1.8A (maximum), 100/240V AC

Surge current: 100, 30 and 240V AC, 60A (maximum)

Leakage current: 0.25mA (maximum)

Over-voltage protection

Over-current protection: 110-200% rated load, have function of automatic recovery

Short-circuit protection

Conduction, radiation test: CE:EN 55022:2010 and FCC:part 15

Harmonic testing: EN 61000-3-2:2006 + A2:2009

Voltage change test: EN 61000-3-3:2008

Static test: EN 61000-4-2

Radiation tolerance test: EN 61000-4-3

Electronic rapid pulse test: EN 61000-4-4

Lightning test: EN 61000-4-5

Conduction resistance test: EN 61000-4-6

Voltage dip test: EN 61000-4-11

UL standards: EN 60950-1 and UL 60950-1

CB/TUV/GS/UL/cUL/KC/SAA/PSE

CE/FCC/C-TICK
