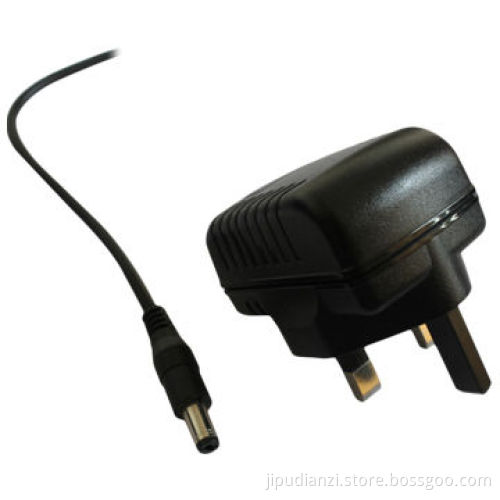

15W Series AC/DC Adapters for Tablet PCs, with 47 to 63Hz Frequency Range

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Wall-mounted adapters for iPad
Compact structural design
Double insulation pulse width modulation mode integrated circuit design
Over-current (overload), over-voltage, short-circuit protections
Low standby power consumption, high efficiency
Energy Star level V-compliant

Input:

Voltage range: 90 to 264V AC
Frequency range: 47 to 63Hz
Current: 300mA (RMS) at 90V AC (maximum)
Inrush current: 30A at 240V AC (maximum)
No load power consumption: 0.15W (maximum)

Output:

Power: 15W (maximum)
Average efficiency Energy Star EPS2.0 standard
Ripple and noise: 200mV (maximum)
Holdup time: 10 to 20 minutes at full load, 110V AC
Hi-pot: 3,000V AC/1 minute/5mA
Insulation resistance: 20MΩ (minimum)

General specifications:

Leakage current: 0.25mA at 240V AC (maximum)
Over-current protection: 110 to 150% (maximum)
Over-voltage protection: 120 to 150% (maximum)
Short-circuit protection: automatic recovery
Working environment:
Operating temperature range: -5 to 45°C
Storage temperature range: -20 to 70°C
Humidity range: 35 to 85% RH

Safety certificates:

CE: 60950 and 60065
CCC: GB4943.1-2011
UL: 60950-1 and 60065, FCC, GS, SAA + C-Tick

Wall-mounted adapters for iPad

Compact structural design

Double insulation pulse width modulation mode integrated circuit design

Over-current (overload), over-voltage, short-circuit protections

Low standby power consumption, high efficiency

Energy Star level V-compliant

Voltage range: 90 to 264V AC

Frequency range: 47 to 63Hz

Current: 300mA (RMS) at 90V AC (maximum)

Inrush current: 30A at 240V AC (maximum)

No load power consumption: 0.15W (maximum)

Power: 15W (maximum)

Average efficiency Energy Star EPS2.0 standard

Ripple and noise: 200mV (maximum)

Holdup time: 10 to 20 minutes at full load, 110V AC

Hi-pot: 3,000V AC/1 minute/5mA

Insulation resistance: 20MΩ (minimum)

Leakage current: 0.25mA at 240V AC (maximum)

Over-current protection: 110 to 150% (maximum)

Over-voltage protection: 120 to 150% (maximum)

Short-circuit protection: automatic recovery

Working environment:

Operating temperature range: -5 to 45°C

Storage temperature range: -20 to 70°C

Humidity range: 35 to 85% RH

CE: 60950 and 60065

CCC: GB4943.1-2011

UL: 60950-1 and 60065, FCC, GS, SAA + C-Tick
