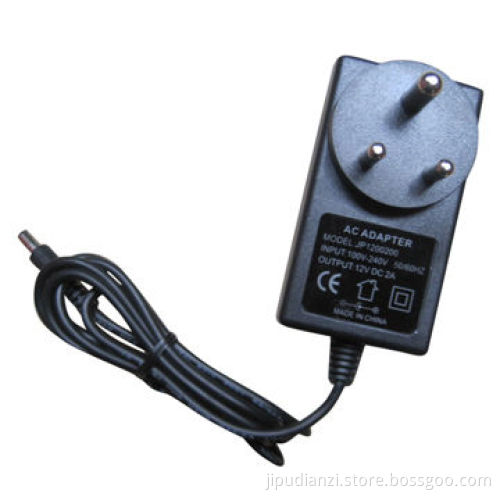

AC 100-240V to DC 12V/2A Power Adapter Supply Charger for EU/AU/US Standard Plug

AC 100-240V to DC 12V/2A Power Adapter Supply Charger for EU/AU/US Standard Plug

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Features:

Protection: short-circuit/over-current/over-voltage
Comprehensive protection, which can effectively prevent the impact from 4kV lightning and AC surge

Electrical specifications:

Input voltage range: 90 to 264V AC
Input current: 500mA
Output voltage: ±5%
Average efficiency: Meet energy star level V (V2.0)
MTBF: 50,000 hours at maximum load levels and an ambient temperature of 25℃ (in correspondence with MIL-HDBK-217)
Low standby power: 0.3W

Environmental parameters:

Operating temperatures: 0 to 45℃
Storage temperatures: -20 to 60℃
Humidity range: 5 to 95% (non-condensing)
Safety approvals: UL (UL60950, UL60065), CE (EN60950）
Dimensions (L x W x H): 76.8 x 51 x 32.3mm

Applications: Network products, ADSL and audio device with Y

Item: AC/DC power adapter

Input voltages: AC 100-240V

Output voltages: DC 12V 2A

Frequency range: 50/60Hz

DC connector size: 5.5*2.1mm or 5.5*2.5mm or others

Product dimension: 80*40*38mm

Length of DC cable: 0.9m (normal type) /1.2/1.5/1.8/2/3m

Conversion efficiency: ≥ 80%

Ripple wave: (mVp-p): < 1%

Line Regulation: ± 0.5% maximum

Load Regulation: ± 1% maximum

Temperature coefficient: ± 0.03% (0 ~ 50°C)

Start time: ≤ 3s (240V AC input, io=100%)

Guard time: ≥ 20ms (240V AC input, io=100%)

Protection: Over current/over voltage/short circuit protection

Working temperatures: -20 ~ 50°C

Storage temperatures: -30 ~ 75°C

Humidity range: 0 ~ 95% RH

Warranty: One year

Payment & delivery:

Packaging detail: Inner color box or standard industrial packaging into an outer export carton
Delivery detail: 7-25 days (depends on the quantity) after payment confirmed

Why choose us:

More than 80 sets of advanced connectors & assembly cables machines and testing equipment
Large production capacity, short delivery
Strict QC checking before delivery
OEM/ODM service available, help you on designing
7*24 hours online services and after sale service
Prompt quotation for your inquiry
More than 9 years experiences in USB cable and connector field
Professional connector and cable manufacturer, with good quality and competitive price
