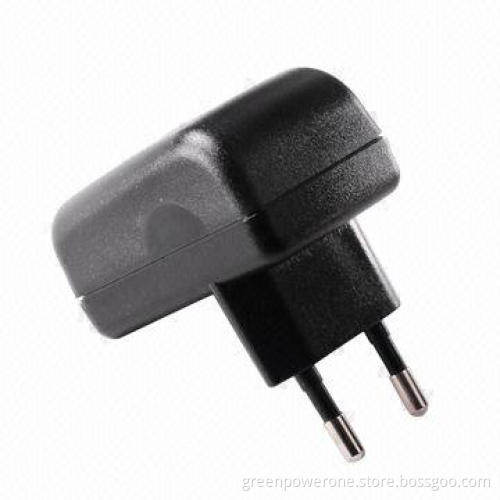

12V 0.5A USB Power Adapter with CE Mark, 0.5-1.2A Rated Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Input:

Voltage range: 90 to 264V AC

Frequency range: 47 to 63Hz

AC current: 0.3A/115, 0.21A/230V AC

Leakage current (maximum): cold start, 30A/115, 50A/230VAC

Leakage current (maximum): 0.25mA/240V AC

Certificates: UL, cUL, FCC, CCC, PSE, SAA, CE, TÜV-GS andBS

Meet efficiency level: V

Output:

Voltages: 3-36V DC

Rated current: 0.5-1.2A

Maximum power: 6W

Ripple (maximum): 1% type voltage

Voltage tolerance: 5%

Protection:

Overload: more then 105%, rated output power (protection type:Hiccup mode, recovers automatically after fault condition isremoved)

Over-voltage: 120 to 160% (protection type: clamp by internalcircuit)

Over-temperature: 140°C typically (protection type:shutdown O/P voltage, recovers automatically after temperature goesdown)

Vibration: 10 to 500Hz, 2G 10 minutes/1 cycle, period for 60minute each along X, Y and Z axes

Safety and EMC:

Safety standards: GB8898, GB4943, EN/IEC/UL60950,EN/IEC/UL60065

Withstand voltage: I/P-O/P: 3kV AC

EMI conduction and radiation: compliance to FCC part 15 classB, EN55022, EN61204-3 class B

Harmonic current: compliance to EN61000-3-2, 3

EMS immunity: compliance to EN61000-4-2, 3, 4, 5000-4-2, 3, 4,5
