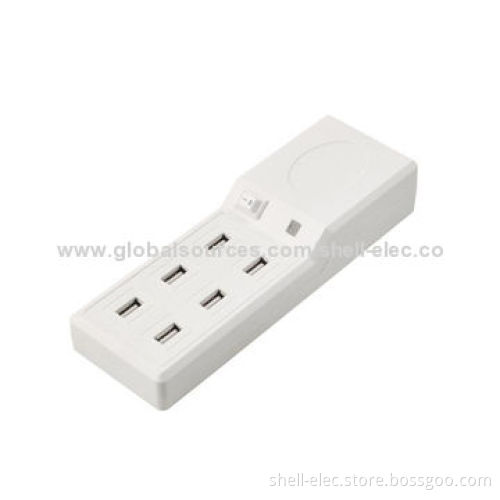

6 USB charger for all device up to 5V, 10A output
- Payment Type:
- 70% T/T before Shipment
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | 70% T/T before Shipment |
|---|
Product Description
Product Description
- Input voltages: 110 to 240V AC
- Input current: 0.5A (maximum)
- Input frequency: 50/60Hz
- Output voltage: 5V
- Output current: 2.1A or 2.4A for each port, up to 10A
- No-load power consumption: 0.03W (maximum)
- Efficiency: 80% (minimum)
- Ripple and noise range: 100 to 200mV
- Counter current: 5mA (maximum)
- Line regulation: ±1%
- Load regulation: ±5%
- Switching adapter, fixed frequency control circuit, apply to mobile phones, PDAs, digital cameras, tax-control POS, routers and more
- Meets all related safety standards
-
Output protections:
- Short-circuit
- Over-voltage
- Over-current
-
Reliability:
- Insulation resistance: 7MΩ (minimum)
- Leakage current: 0.25mA (maximum)
- Operating temperatures: -5 to 45°C
- Storage temperatures: -20 to 85°C
- Storage humidity range: 5 to 95% RH
- Burn-in test: 80 to 100% load, 40 ±5, four hours
- Operating indication: single-color or dual-color
- Certificates: UL, CB, CE, EMC/LVD, EUP and RoHS
- Size: 55x 29 x 39mm
- Weight: 115g
- Packing: polybag, blister card and color box
- Short-circuit
- Over-voltage
- Over-current
- Insulation resistance: 7MΩ (minimum)
- Leakage current: 0.25mA (maximum)
