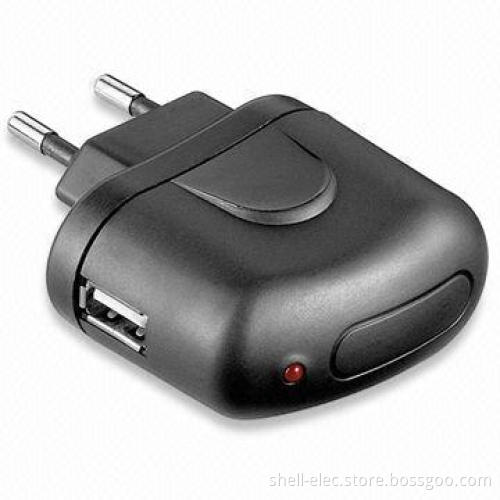

Universal USB Travel Adapter for Mobile Phones, with 1,000mA Output Current and 5V Output Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input voltage: 110 to 240V AC

Input current: 0.15A (maximum)

Input frequency: 50/60Hz

Output voltage: 5V

Output current: 1,000mA or 2.1A

No-load power consumption: 0.03W (maximum)

Efficiency: 60% (minimum)

Ripple and noise: 100 to 200mV

Counter current: 5mA (maximum)

Line regulation: ±1%

Loading regulation: ±5%

Switching adapter, fixed frequency control-circuit, applied tomobile phones, PDAs, digital cameras, tax-control POS, routers andmore

Meets any related safety standards

Output protections:

Short-circuit protection

Over-voltage protection

Over-current protection

Reliable

Insulation resistance: 7mΩ (minimum)

Leakage current: 0.25mA (maximum)

Operating temperature: -5 to 45°C

Storage temperature: -20 to 85°C

Storage humidity: 5 to 95% RH

Burn-in test: 80 to 100% load, 40 ±5, four hours

Operating indication: single-color or dual-color

Certificate: CB, CE-EMC/LVD, EUP and RoHS

RoHS directive-compliant

Dimensions: 55 x 28 x 60mm

Weight: 55g

Packing: polybag, blister and card, color box
