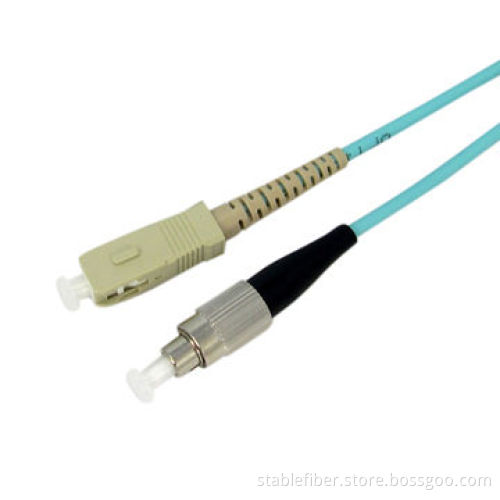

OM3 SC-FC Simplex Fiber-optic Patch Cord with -40 to 85 Degree, Operating Temperature

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Used on patch panel or for the connection between outlets and terminal equipment

Stable offer customized products with cables PVC, LSZH, OFNP jacket in your required colors and length. Fiber has G652D, G655, G657A, OM2, OM3, OM4, single fiber, zip cord fiber, bundle type and ribbon type for choice

The quality of connectors and fibers are mainly determined by the insertion loss and return loss

Applications:

High bit rate data transmission
Telecommunications
Testing instruments
Active device terminations
LAN/WAN
FTTX

Features:

SM and MM are available
Standard and custom configurations
Meets telecordia-GR-326-CORE specification
Low insertion loss
Ultra low back reflection
For 3.0, 2.4, 2.0mm jacket or 900μm buffer

Specification:

Insertion loss:
- SM: ≤0.2dB
- MM: ≤0.5dB
Return loss:
- PC polish: ≤35dB
- UPC polish: ≤50dB
- APC polish: ≤65dB

Each test insertion loss changes:

Interchangeable test: ≤0.2dB
The vibration test: ≤0.1dB (10 to 60Hz, 1.5mmamplitude)
Tensile tests: ≤0.1dB (0 to 15Hg tension, Φ0.9mm fiber except)
High temperature testing: ≤0.2dB (+85°C for 100 hours)
Low temperature tests: ≤0.2 to 40°C (dB for 100 hours)
The temperature cycling tests: ≤0.2dB (-40 to 85°C + 5times)
Humidity tests: ≤0.2dB (+25 to + 65°C, relative humidity 93%, 100 hours)

High bit rate data transmission

Telecommunications

Testing instruments

Active device terminations

LAN/WAN

FTTX

SM and MM are available

Standard and custom configurations

Meets telecordia-GR-326-CORE specification

Low insertion loss

Ultra low back reflection

For 3.0, 2.4, 2.0mm jacket or 900μm buffer

Insertion loss:

SM: ≤0.2dB
MM: ≤0.5dB

Return loss:

PC polish: ≤35dB
UPC polish: ≤50dB
APC polish: ≤65dB

SM: ≤0.2dB

MM: ≤0.5dB

PC polish: ≤35dB

UPC polish: ≤50dB

APC polish: ≤65dB

Interchangeable test: ≤0.2dB

The vibration test: ≤0.1dB (10 to 60Hz, 1.5mmamplitude)

Tensile tests: ≤0.1dB (0 to 15Hg tension, Φ0.9mm fiber except)

High temperature testing: ≤0.2dB (+85°C for 100 hours)

Low temperature tests: ≤0.2 to 40°C (dB for 100 hours)

The temperature cycling tests: ≤0.2dB (-40 to 85°C + 5times)

Humidity tests: ≤0.2dB (+25 to + 65°C, relative humidity 93%, 100 hours)
